ATX/ATX
GPU:460
Power Supply: Up to 260
2 × USB 3.0
1 × HD-Audio

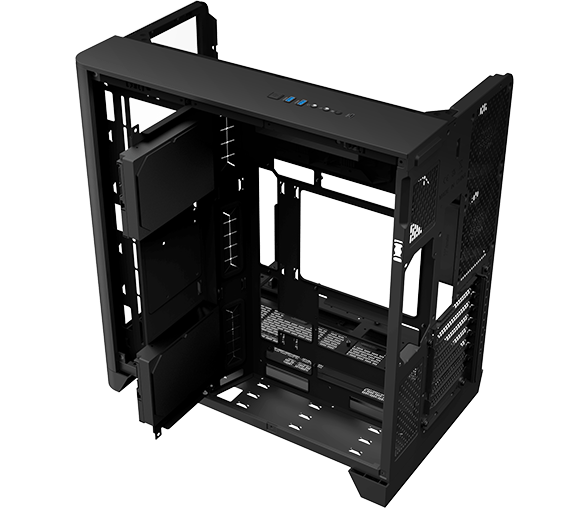

3 × 2.5” SSD

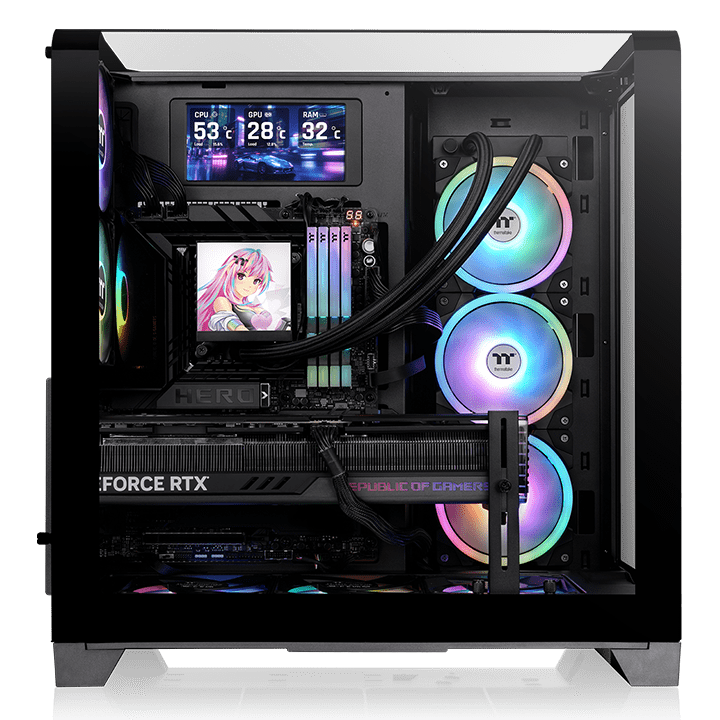

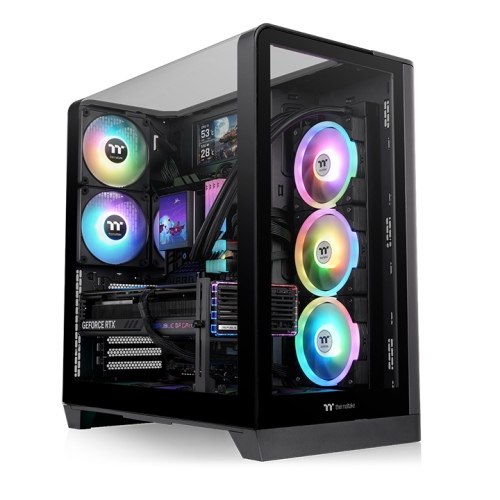

The View 390 TG Mid Tower Chassis
The View 390 TG Mid Tower Chassis features a distinctive shape and enhanced visibility with a curved panel and a tempered glass panel, allowing users to showcase their system.
The image is for reference only.

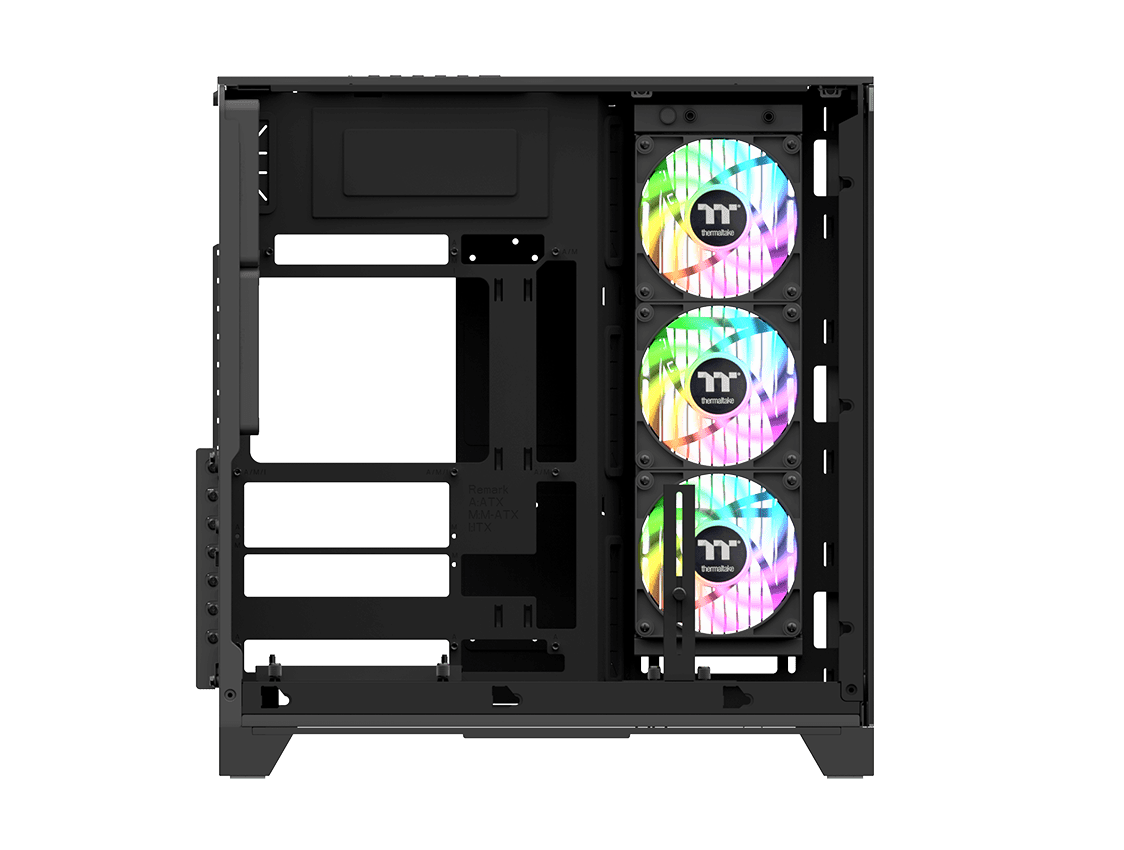

Compatible with Hidden-Connector Motherboards
Created for next-generation motherboards, the View 390 TG Mid Tower Chassis features a special design that support both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.
*Compatible with hidden-connector
motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series
The image is for reference only.

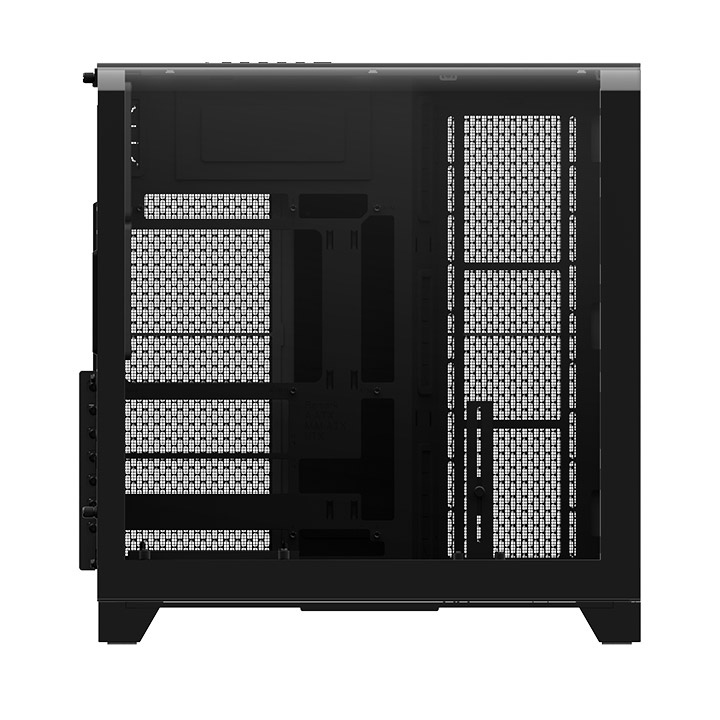

Tempered Glass Front and Left Curved Panel
The View 390 TG Mid Tower Chassis features a curved panel and a tempered glass panel for a distinctive look.
The image is for reference only.

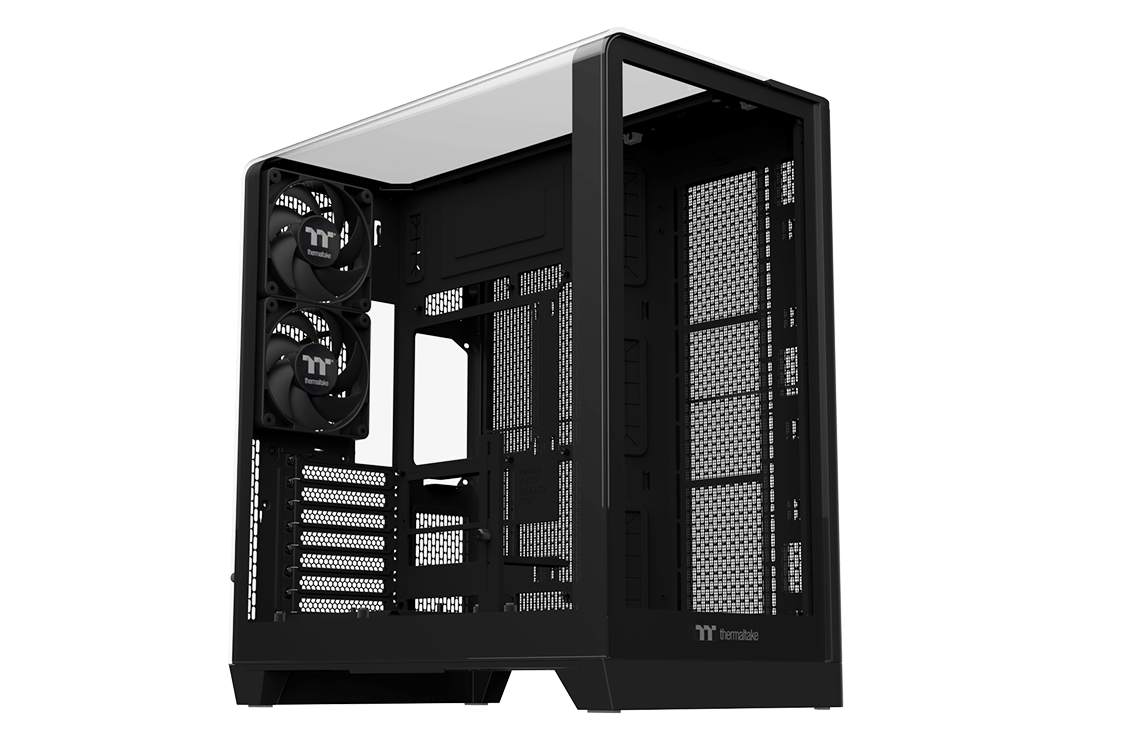

Two CT120 PC Cooling Fans Pre-installed
The View 390 TG Mid Tower Chassis features two 120mm PWM fans at the rear to provide good cooling performance.
The image is for reference only.

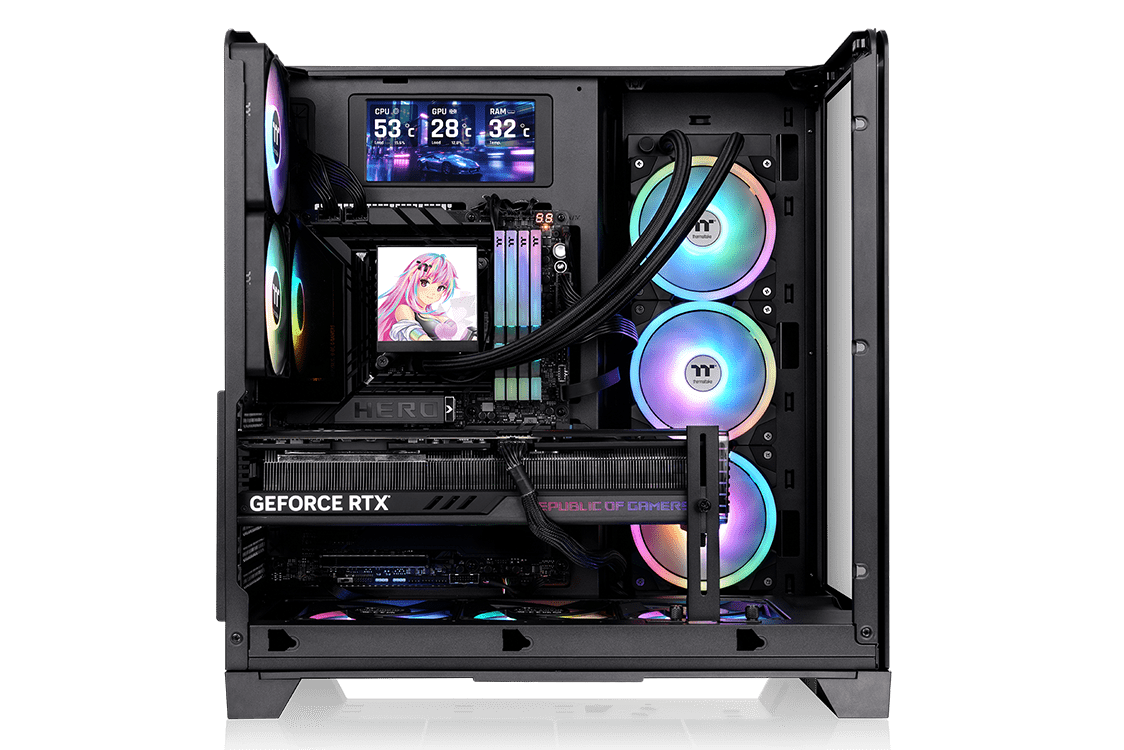

Good Radiator Support
Providing good cooling support, users can choose to place a 360mm radiator at the right of the View 390 TG Mid Tower Chassis.
The image is for reference only.
Visually Pleasing, Totally Interactive
Maximize your View 390 TG Mid Tower Chassis visualeffects by upgrading it with our LCD Screen Kit.
The 3.9” / 6” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the latest TT RGB Plus software.
The image is for reference only.

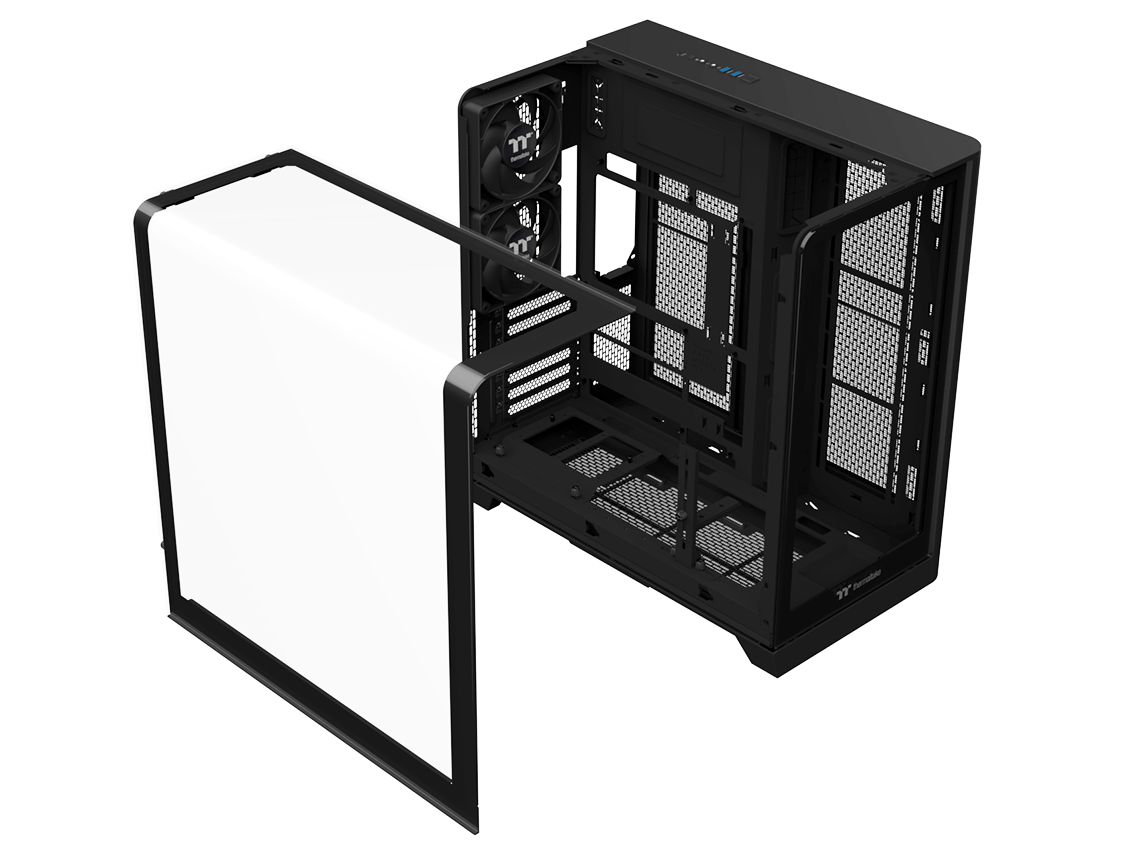

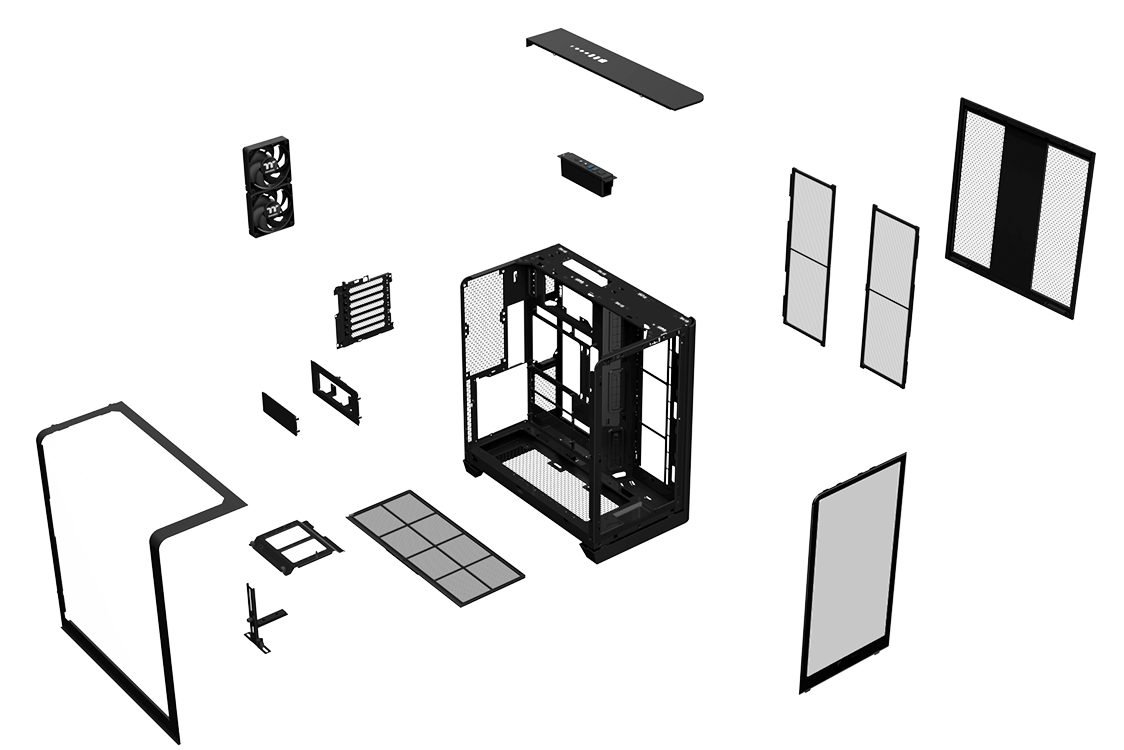

DMD: Dismantlable Modular Design
No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design
The image is for reference only.
Personalize Your LCD Display
Through the TT RGB Plus, the 6‘’ LCD display presents real-time information and plays JPG and GIF files with at a 1480*720 resolution. It comes with six default background styles, and users can upload up to 20 custom images. Additionally, the display can show time and weather information, enhancing both visual appeal and customization options for your build.

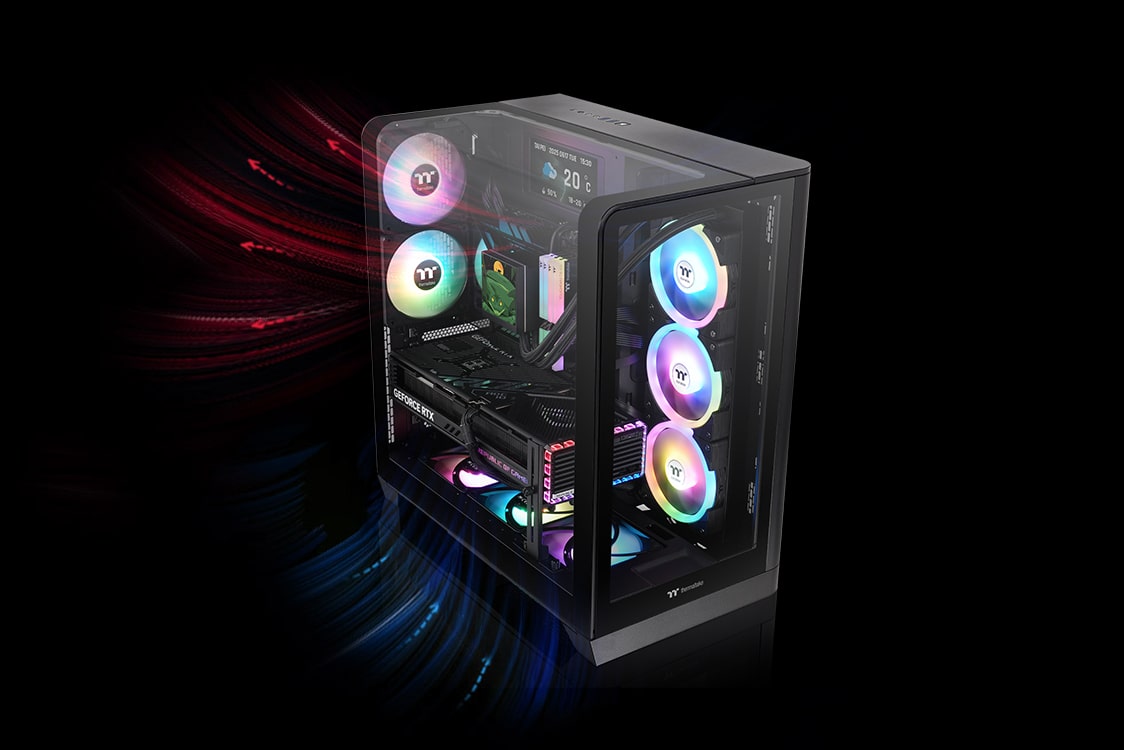

Rear Exhaust Fans
Equipped with two CT120 rear fans, the View 390 TG Mid Tower Chassis provides efficient airflow to keep internal temperatures low at all times.
The image is for reference only.

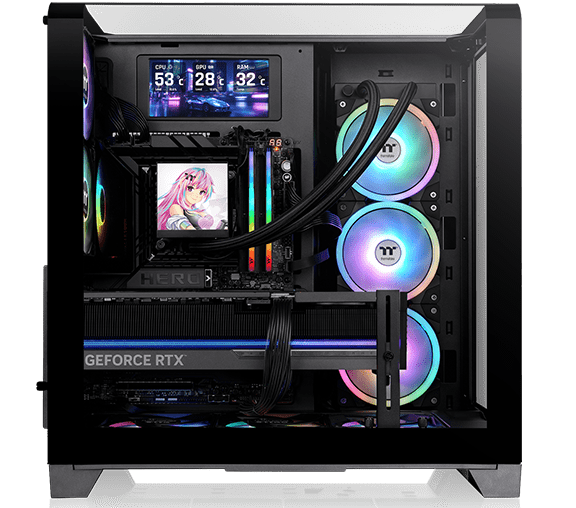

We've Tested Everything, So You Don’t Have To
At Thermaltake, we always stress test our products under harsh conditions to ensure product quality. The View 390 TG Mid Tower Chassis products were tested at 100% full load for 30 minutes, with the most high-end CPU, GPU, and motherboard at the time of test, while paring with a consumer-style setup, allowing us to test how the chassis performs under real-world situations.
Test System
| Chassis | View 390 TG |
| Motherboard | ASUS ROG Maximus Z890 Hero |
| CPU | Intel® Core™ Ultra 9 285K Processor (TDP 250W) |
| GPU | ASUS ROG Astral GeForce RTX 5090 32GB GDDR7 OC |
| RAM | TOUGHRAM Z-ONE RGB DDR5 32G (16G x 2) |
| SSD | Seagate SSD 120G |
| PSU | Toughpower GF3 1200W |
| CPU Cooler | MAGFloe 360 Ultra ARGB Sync |
| Fans |
AIO: SWAFAN EX120 ARGB x 3 (2000rpm) Chassis: CT120 EX Black x 5 (2000rpm) (Rear x 2, Bottom x 3) |

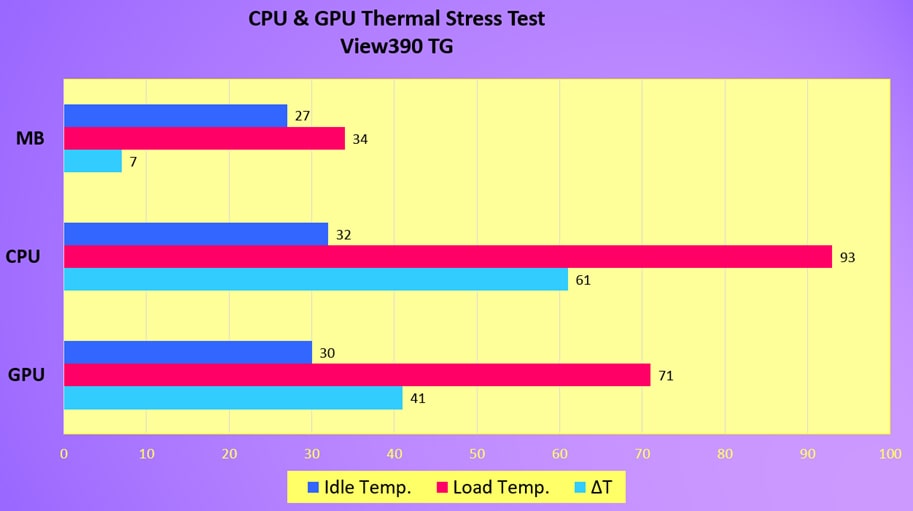

CPU & GPU Thermal Stress Test
View 390 TG

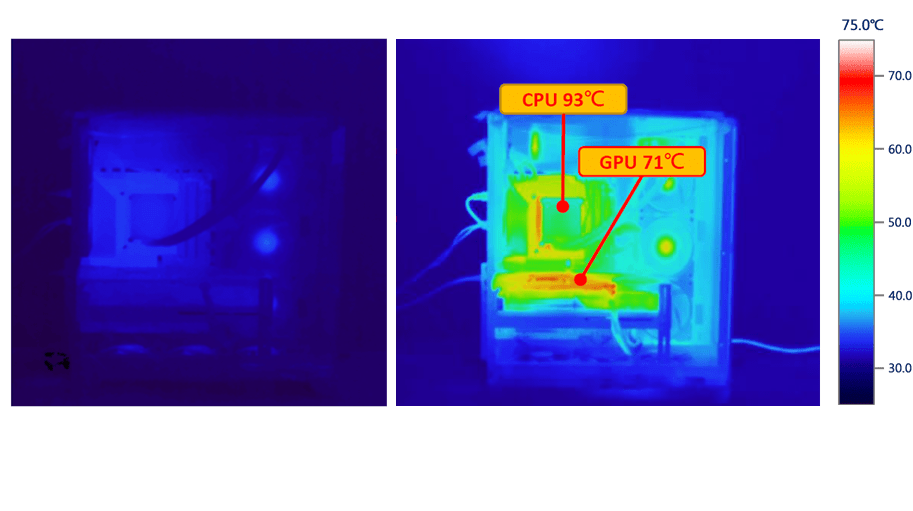

Massive Airflow & Incredible Performance
Thermal images taken during thermal testing. We can see that View 390 TG guarantees good cooling performance and a low internal temperature while using the highest quality components.

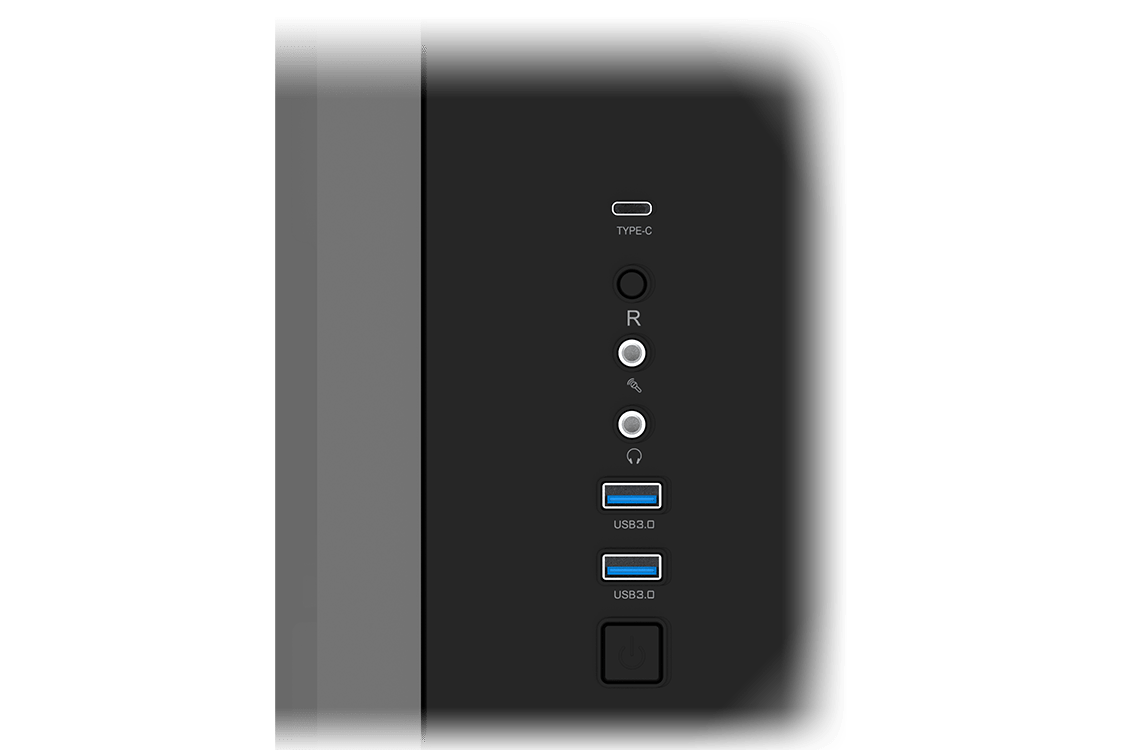

Handy I/O Ports
Two USB 3.0, one USB 3.2 Gen 2 Type-C and HD Audio are placed on the top panel to grant direct access when needed.
The image is for reference only.

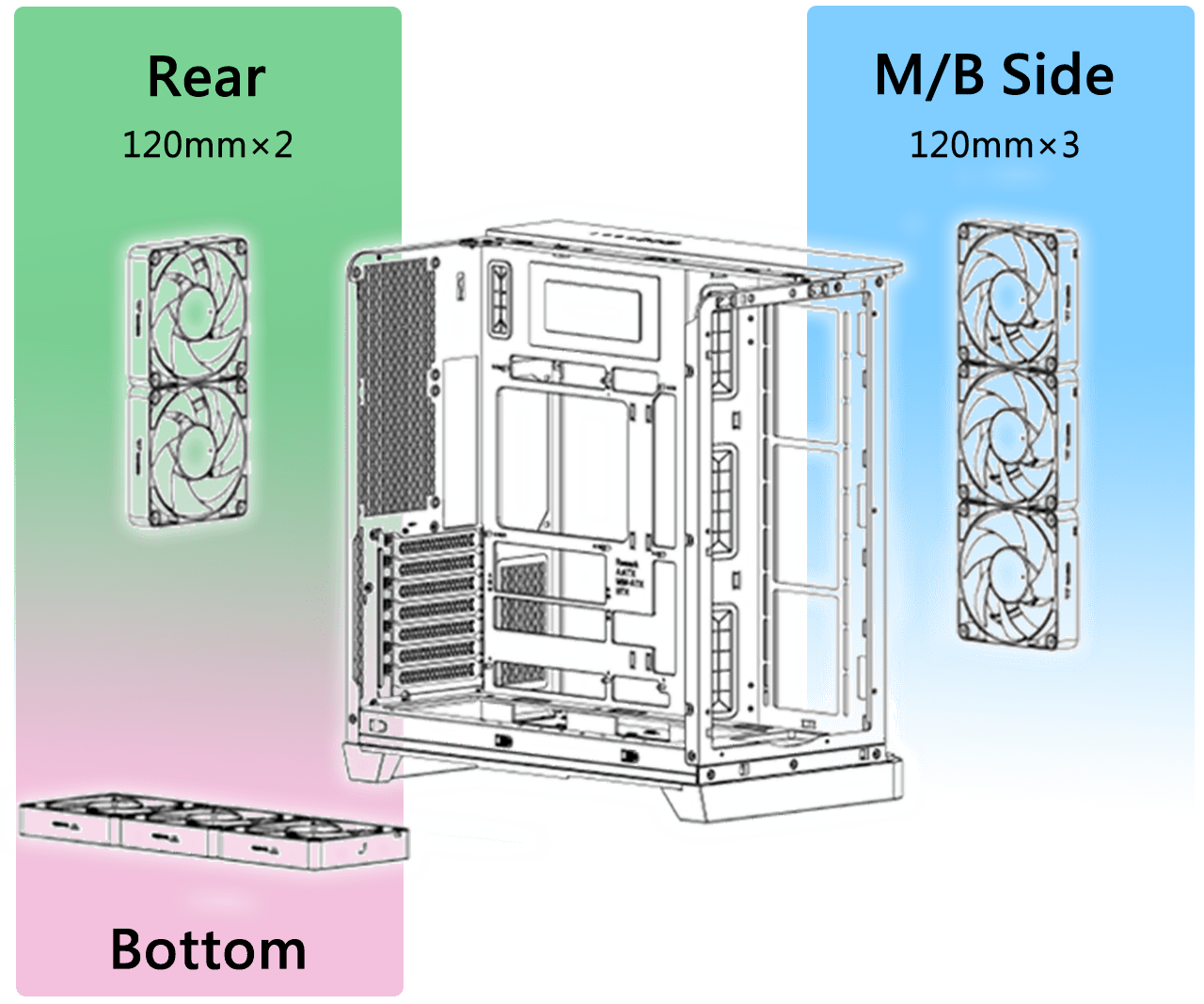

Fan Support List
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Front | - | - | - |
| M/B Side | 3 | - | - |
| Left Side | - | - | - |
| Bottom | 2 | - | - |
| Rear | 3 | - | - |

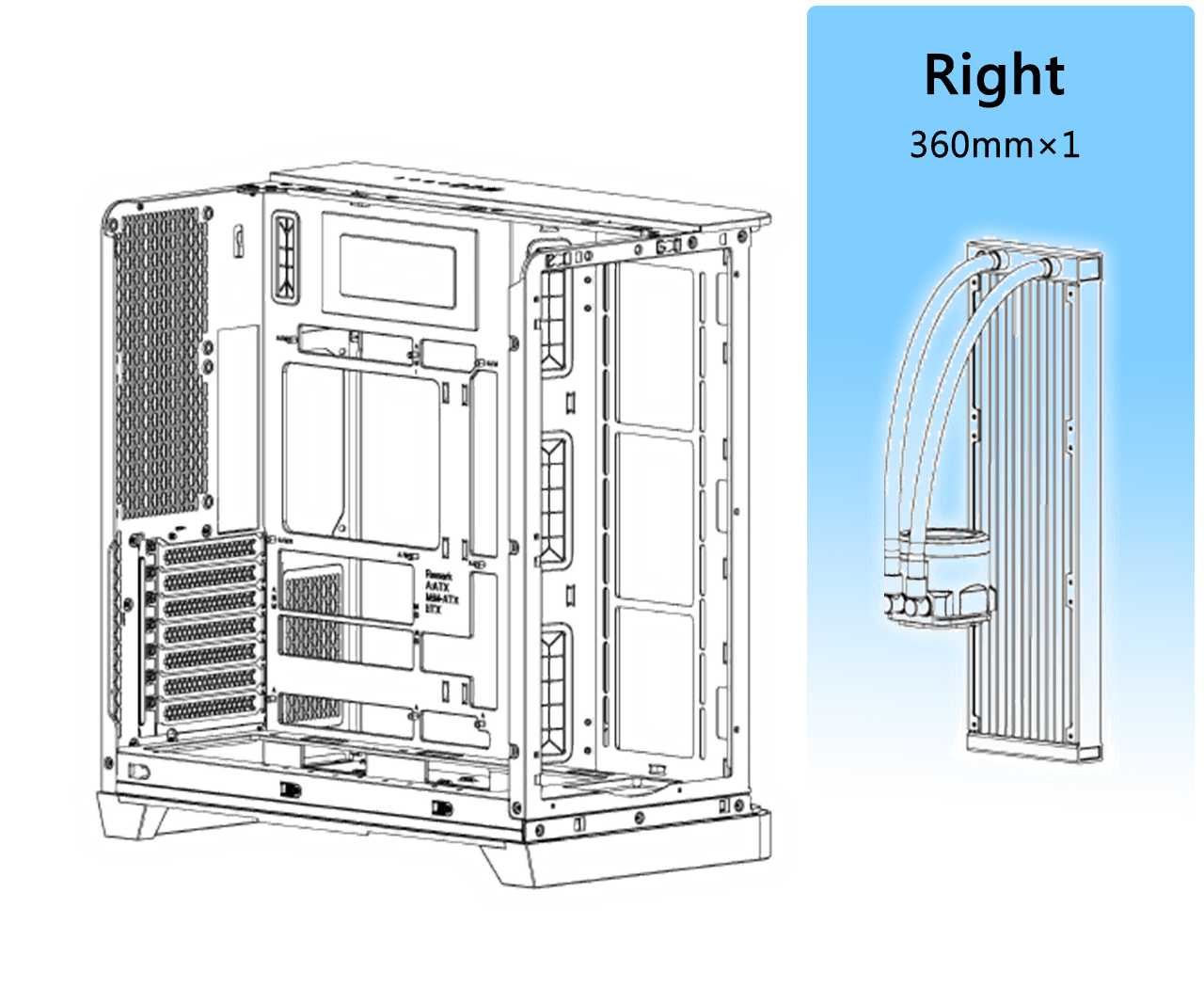

All-in-One Compatibility List
| 120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
|---|---|---|---|---|---|---|
| Right Side | ● | ● | ● | - | - | - |
| P/N |
CA-11F-00M1WN-01 |
|---|---|
| Series | View |
| Model |
View 390 TG |
| Case Type |
Mid Tower |
| Dimension (H x W x D) |
503 x 287 x 485mm (19.80 x 11.30 x 19.1inch) |
| Side Panel |
4mm Tempered Glass x 2 |
| Material | SPCC |
| Cooling System |
Rear (exhaust): 120 x 120 x 25 mm CT120 fan (500~2000rpm, 25.8 dBA) x 2 |
| Drive Bays |
2 x 3.5” , 1 x 2.5” or 3 x 2.5” |
| Expansion Slots |

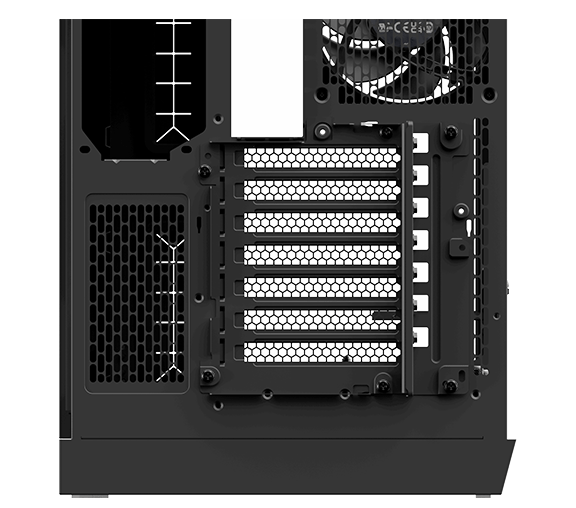

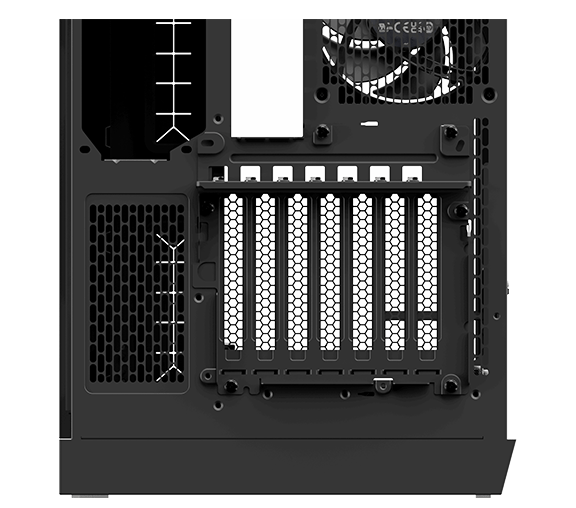

7(Rotatable Patented Design) |
| Motherboards |
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| Hidden-Connector Motherboard |
9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port |
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU |
Standard PS2 PSU (optional) |
| Fan Support |
Right: 3 x 120mm Rear: 2 x 120mm Bottom: 3 x 120mm |
| Radiator Support |
Right Side(AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm |
| Clearance |
CPU cooler height limitation: 160mm VGA length limitation: 460mm PSU length limitation: 200mm (with 2.5” SSD) 260mm (without 2.5” SSD) |
