Toughpower i2000W

Out of stock

P/N

PS-TPI-2000FNFDP*-1

USD$999,999.00

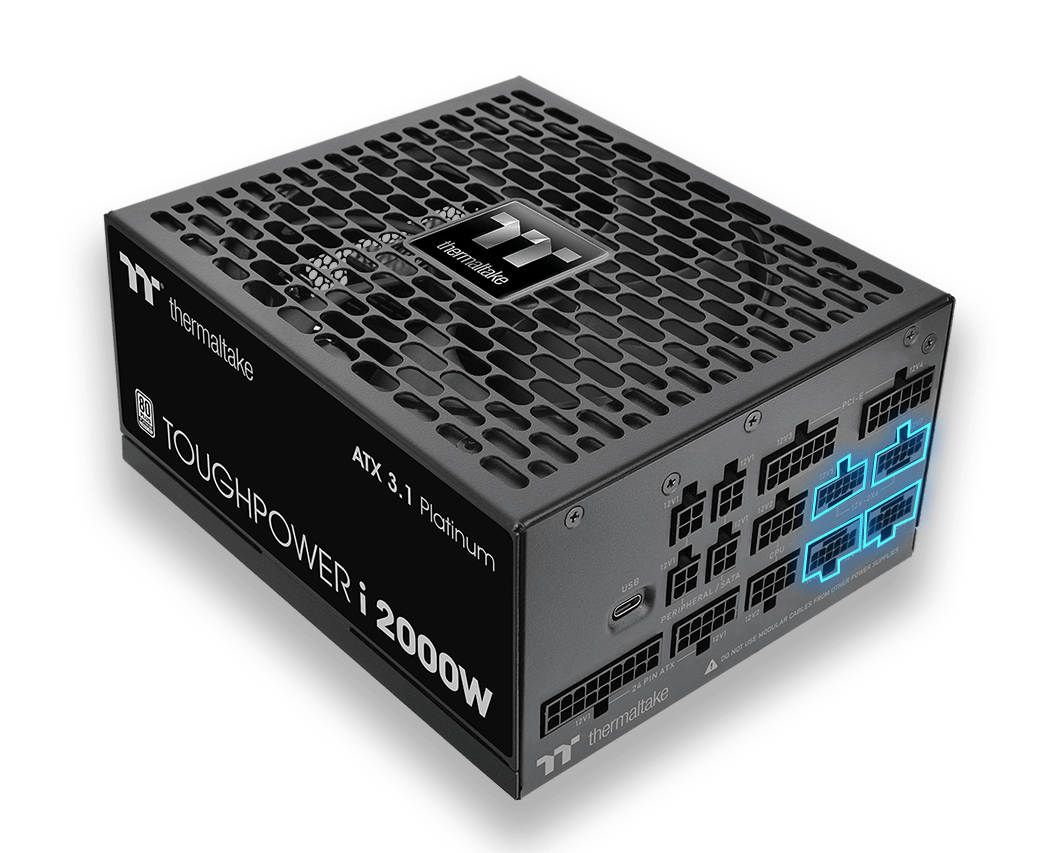

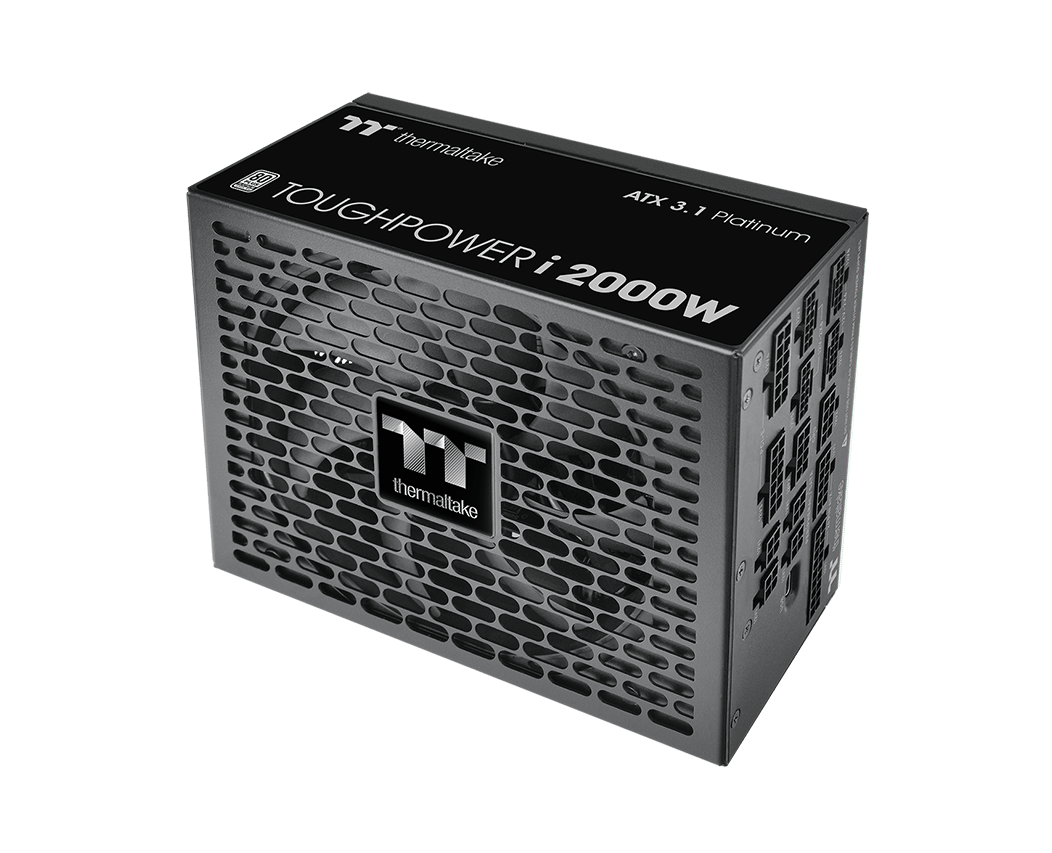

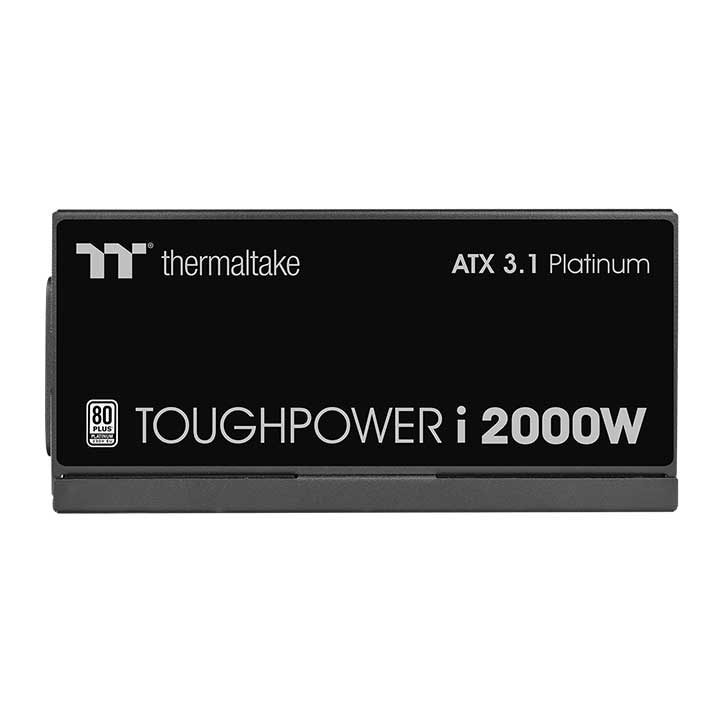

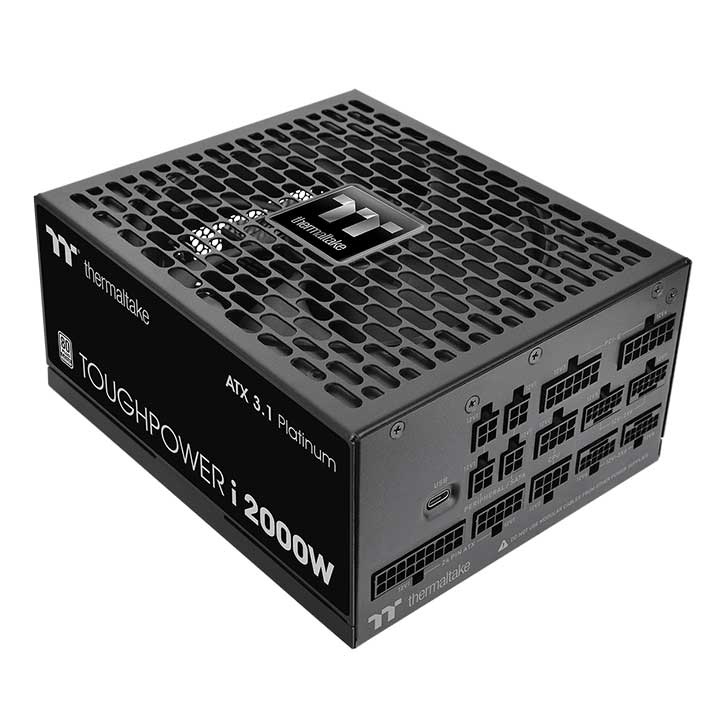

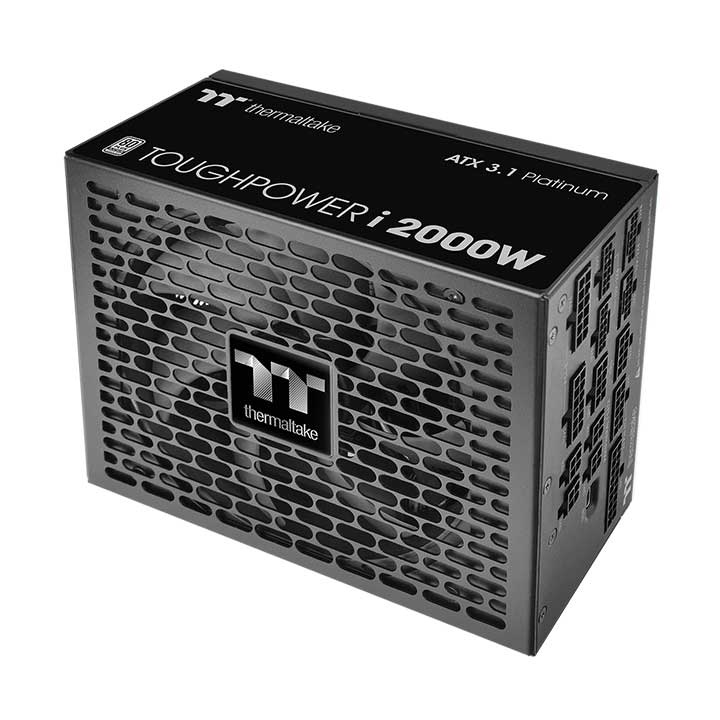

Toughpower i2000W is an 80 PLUS Platinum 230V certified digital PSU, fully compatible with ATX 3.1 specifications and built for high-performance workstations supporting up to 2000W and four native PCIe 12V-2x6 connectors.

It offers real-time power monitoring via TT RGB PLUS software and switchable single/multi-rail mode for ultimate stability and control.

Smart Digital Control

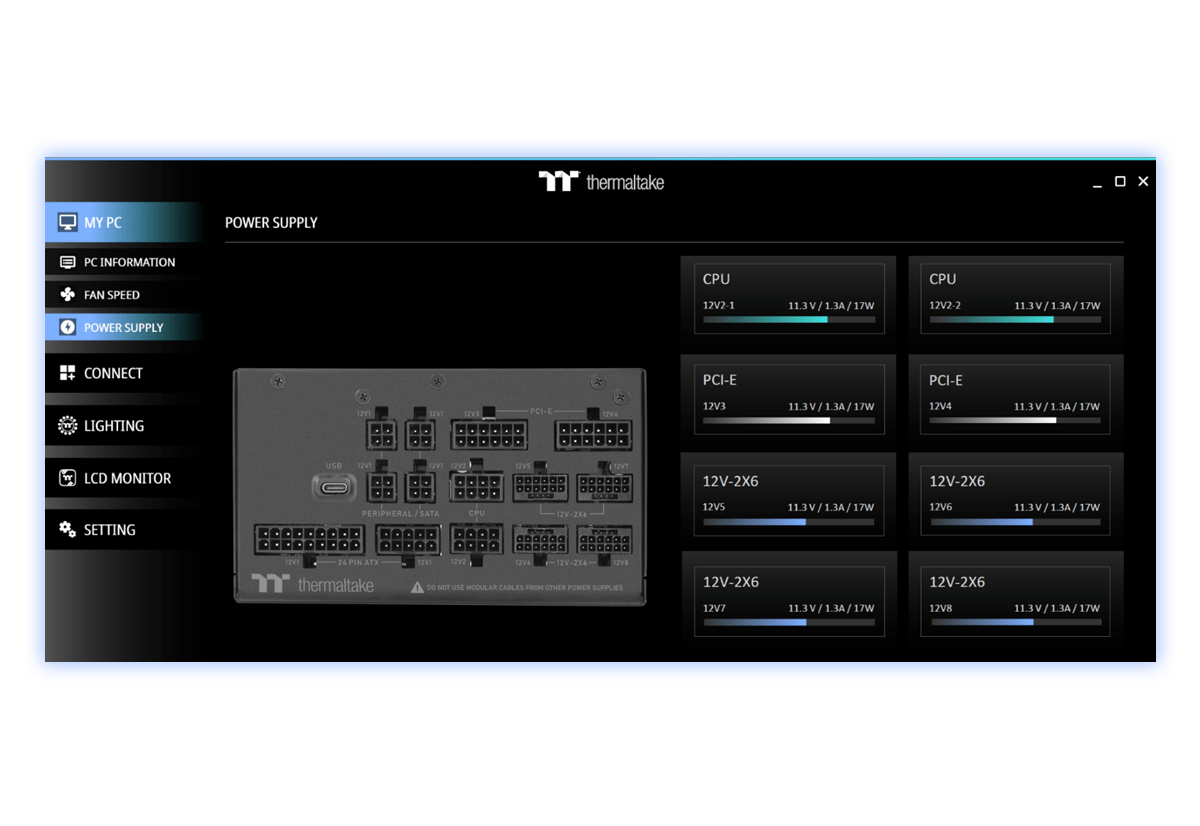

Built on a powerful digital platform, the Toughpower i2000W lets you monitor wattage, voltage, efficiency, and temperature in real time via the TT RGB PLUS software on desktop or mobile. Stay in control. Stay protected.

Smarter Control, Safer Power.

With real-time monitoring, single/ multi rail mode switching, and Smart Zero Fan control via TT RGB PLUS software, you gain full command over performance, efficiency, and protection.

Smart Monitoring, Flexible Protection

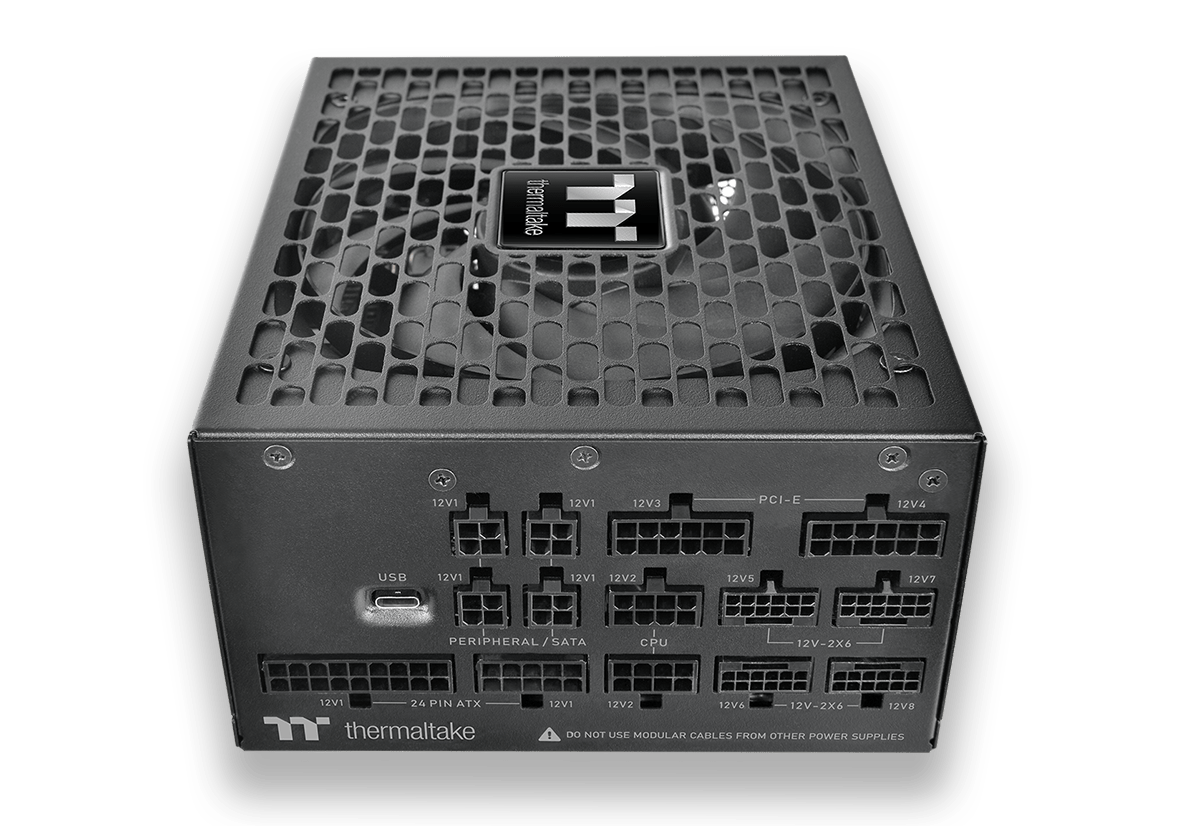

Monitor power usage in real time for PCI-E, CPU, and 12V-2x6 outputs via software, while switching between single and multi rail modes to optimize protection for overclocking or multi GPU setups.

ATX 3.1 Ready

Toughpower i2000W is fully compatible with Intel ATX 3.1 specifications, supporting up to 200% power excursion, reaching 60% efficiency at low load, and meeting all required power supply timing standards.

ATX 3.0

ATX 2.0

Total power excursion

1.3X

Total Power Excursion

GPU Power Excursion

PCIe Gen 5.1 Ready

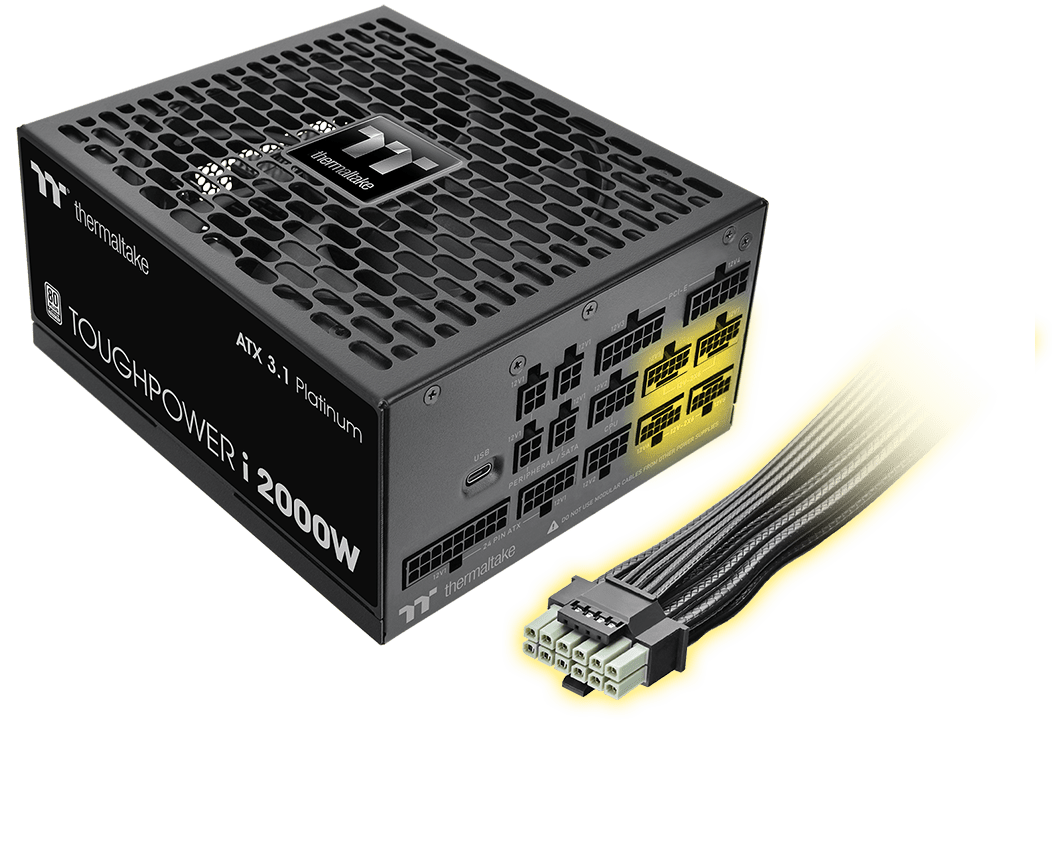

Toughpower i2000W comes with native 12V-2x6 (16 pin) connectors to deliver powerful and stable performance, allowing the PSU to support next-generation GPUs.

The wattage marked on the 12V-2x6 connector follows Intel's recommended design guideline. With four native 16 pin (12V-2x6) PCIe connectors, the i2000W can support multiple high-wattage PCIe 5.1 graphics cards simultaneously.

Note:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before using the PCIe 12V-2x6 cable.

16pin Connector

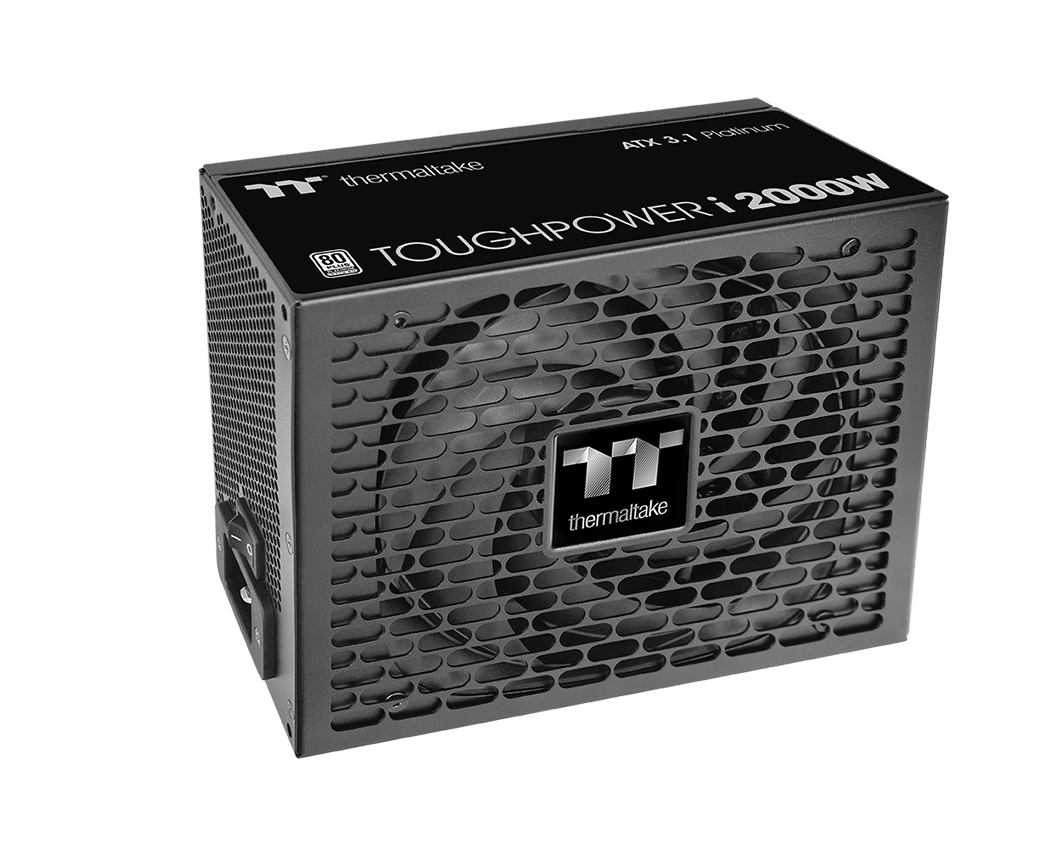

Be Smart, Stay Quiet

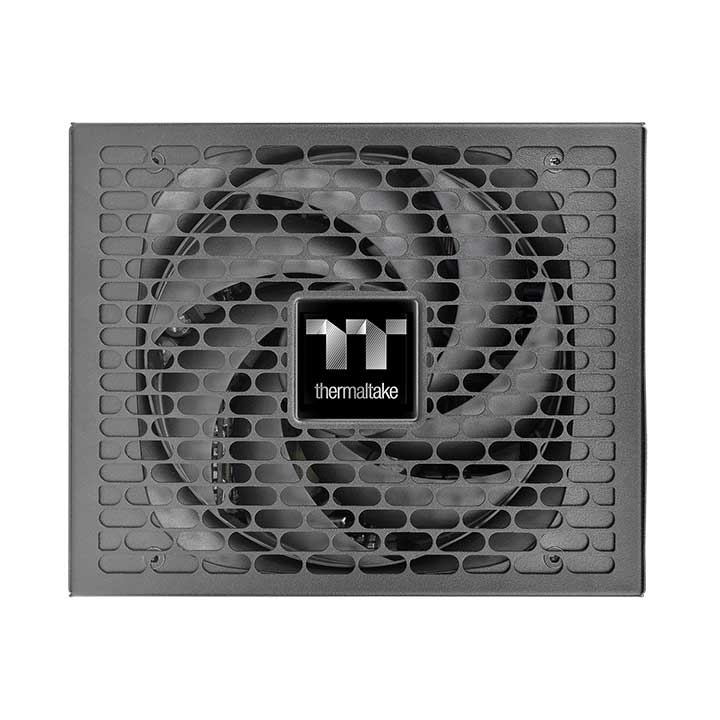

Featuring an ultra-quiet 140mm fan with Smart Zero Fan technology to provide efficient and silent cooling. Fully modular low-profile cables let users to have cleaner builds and optimize airflow.

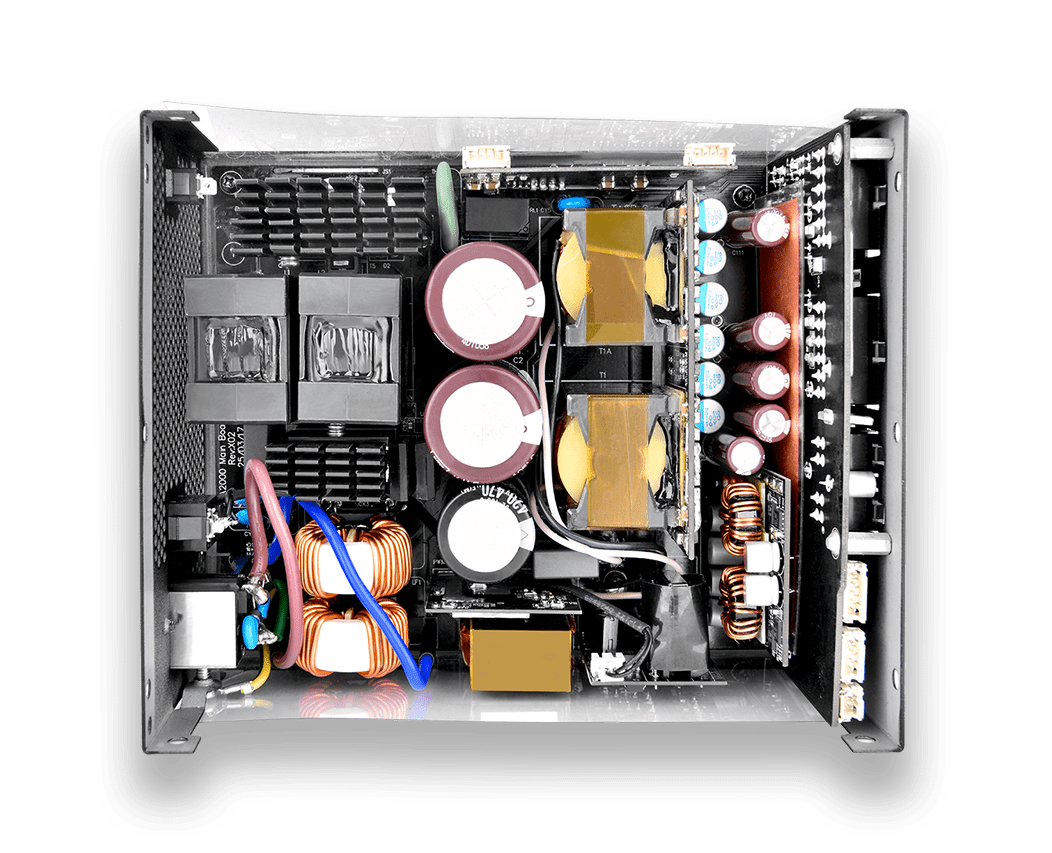

High Amperage Single +12V Rail & High-Class Technologies

Powerful single +12V rail can deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides extremely stable operation and enhanced voltage regulation.

AC INPUT	Input Voltage: 220 - 240V~ Input Current: 15.0A Max. Frequency: 50 - 60Hz
DC OUTPUT	+3.3V	+5V	+12V	+5VSB
Max Output Current	22.0A	22.0A	166.67A	3.0A
Max Output Power	120W		1999.92W	15W
Total Power	2000W

Smart Power in the Cloud

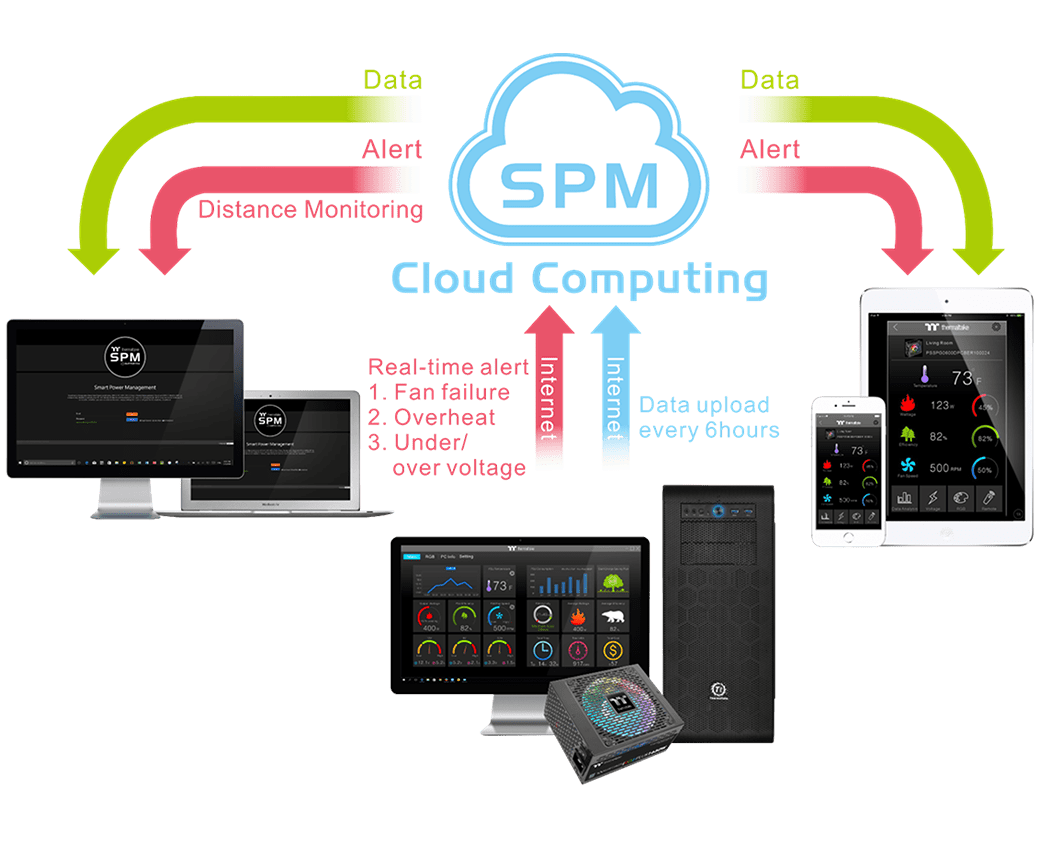

Monitor and analyze real time power data across devices with DPS G software. Upload key information to the cloud and easily share reports through mobile or social platforms.

Built-in Industrial Grade Protection

To protect your hardware, Toughpower i2000W is built with industry grade protections: OCP (Over Current Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection).

OCP

Over Current Protection
OVP

Over Voltage Protection
UVP

Under Voltage Protection
OPP

Over Power Protection
SCP

Short Circuit Protection
OTP

Over Temperature Protection

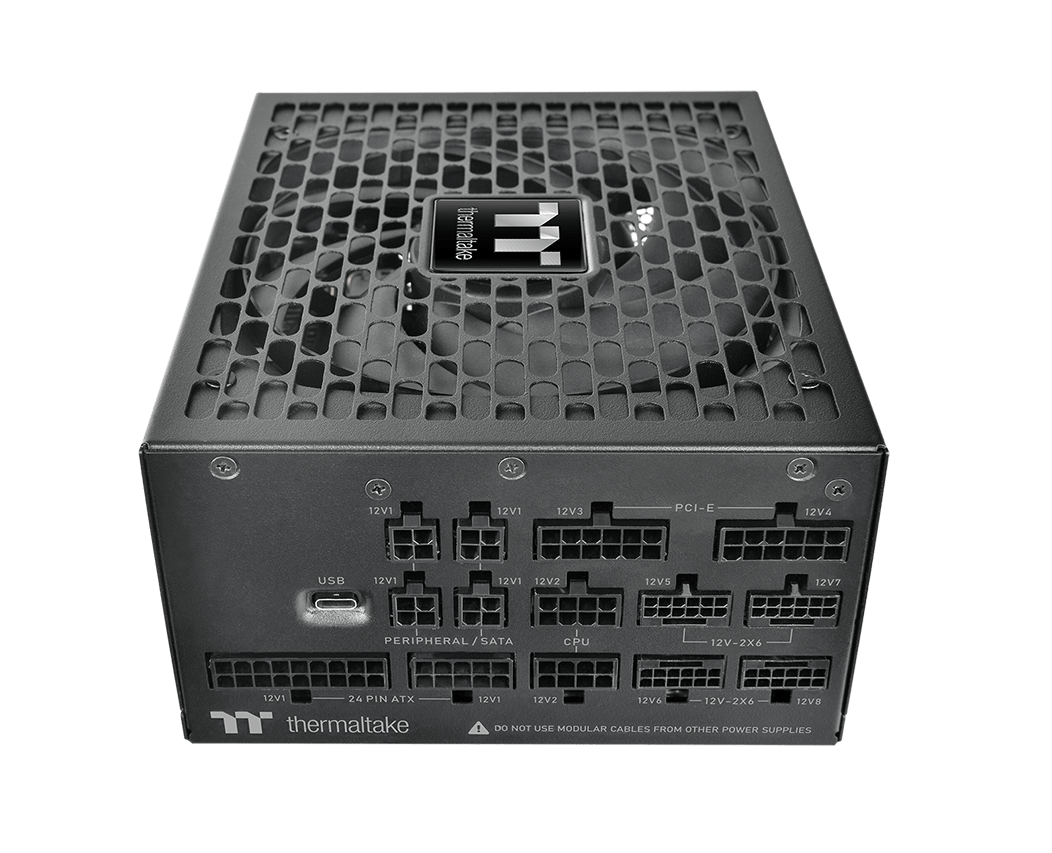

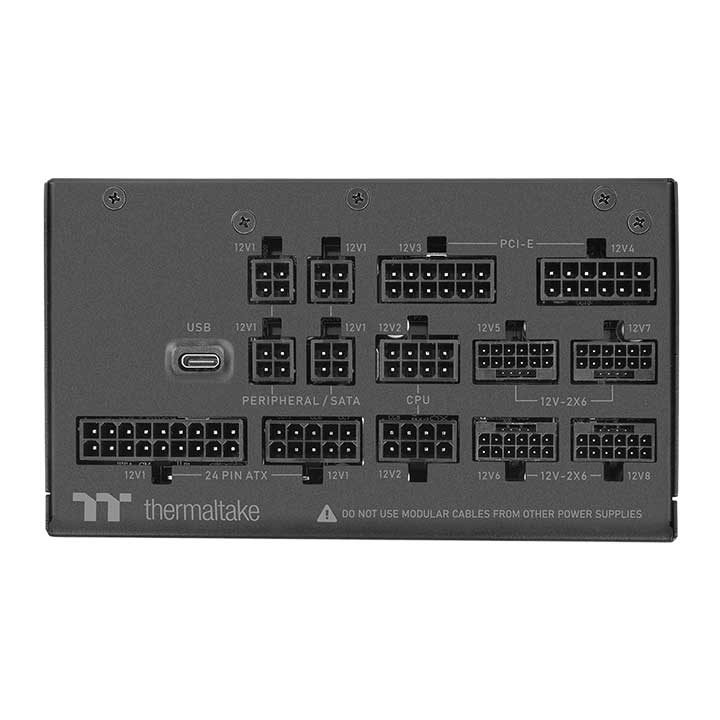

Fully Modular Low-Profile Cables

Offers users more flexibilities for PSU installation. Low-profile black cables make cable management easier, reduces clutter and increases airflow inside the chassis.

Connector Type	Connector Quantity	Cable Quantity	Cable Length
Main Power (24Pin)	X 1	X 1	600mm
ATX 12V (4+4Pin)	X 2	X 2	700mm
PCIe (6+2Pin)	X 8	X 8	500mm
PCIe (12+4Pin) 600W	X 4	X 4	600mm
SATA (5Pin)	X 12	X 3	500mm+150mm+ 150mm+150mm
Peripheral(4Pin)	X 8	X 2	500mm+150mm +150mm+150mm

80 PLUS Platinum Certified

80 PLUS Platinum(230V EU) certified, the 2000W model delivers up to 92% energy efficiency, minimizing power loss and heat generation even under full load.

More Information
P/N	PS-TPI-2000FNFDP*-1
watts	2000W
Model	TTI-2000DH3FCP-3
Max. Output Capacity	2000W
Color	Black
Dimension ( W / H / D )	150mm(W)x86mm(H)x180mm(D)
PFC (Power Factor Correction)	Active PFC
Power Good Signal	100-150 msec
Hold Up Time	> 17msec at 80% load
Input Current	15.0A Max.
Input Frequency Range	50 - 60Hz
Input Voltage	220 - 240V~
Operating Temperature	0°C to +50°C
Operating Humidity	20% to 90%,non-condensing
Storage Temperature	-20°C to +70°C
Storage Humidity	5% to 95%, non-condensing
Cooling System	14cm FDB fan
Efficiency	80 PLUS® Titanium & 230V EU Platinum certified
MTBF	100,000 hrs minimum
Safety Approval	CE/UKCA/FCC/ICES/CB/TUV/cTUVus/CCC/BSMI/LVD/RCM/BIS/KC/KCC
PCI-E 6+2pin	8
PCIe 12+4pin	4
