TOUGHFAN EX14 Pro High Static Pressure PC Cooling Fan – Swappable Edition (3-Fan Pack)
Out of stock
P/N
CL-F172-PL14BL-A
USD$89.99

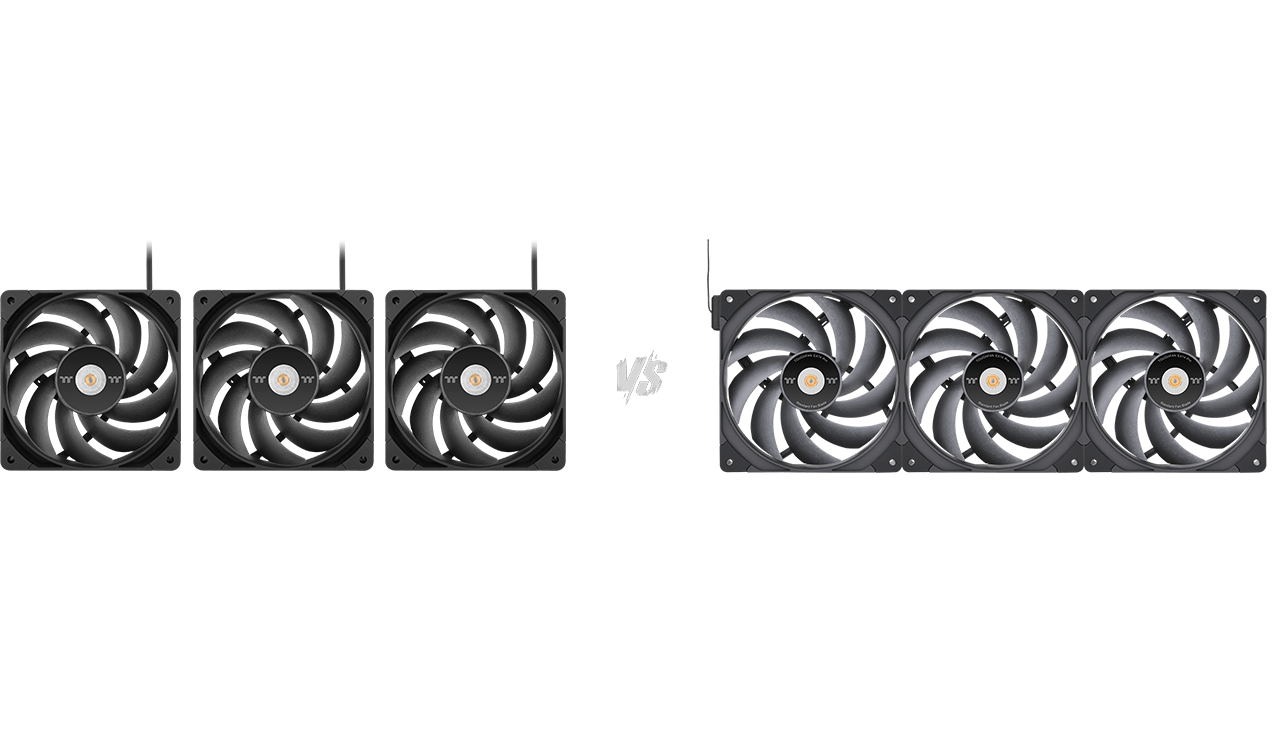

By adding the MagForce 2.0 and swappable fan blade design to the powerful TOUGFHAN Pro, the new TOUGHFAN EX Pro can provide supreme cooling performance with a quick magnetic connection, allowing you to swap the fan blades to fit installation preferences.
| P/N | CL-F172-PL14BL-A |
|---|---|
| Fan Dimension | 140 x 140 x 25 mm |
| Interface |
4 Pin - PWM |
| Started Voltage | 6 V |
| Rated Current | 0.3 A |
| Rated Voltage | 12 V |
| Power Input |
3.6 W |
| Fan Speed | PWM 500~2000 R.P.M |
| Max. Air Pressure |
Standard Fan Blade : 3.57 mm-H2O(one fan) Reverse Fan Blade : 2.95 mm-H2O(one fan) |
| Air Flow |
Standard Fan Blade : 119.6 CFM(one fan) Reverse Fan Blade : 102.3 CFM(one fan) |
| Noise |
Standard Fan Blade : 31.6 dB-A(one fan) Reverse Fan Blade : 34.1 dB-A(one fan) |
| Bearing Type | Hydraulic Bearing |
| Life Expectation | 40,000 hrs,25℃ |
| Included items |
Fan Frames x 3 Standard Fan Blade x 3 (Pre-installed) Reverse Fan Blade x 3 Cable x 3 |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
TOUGHFAN EX12/14 Pro High Static Pressure PC Cooling Fan manual
- manual
- 2024-01-16
