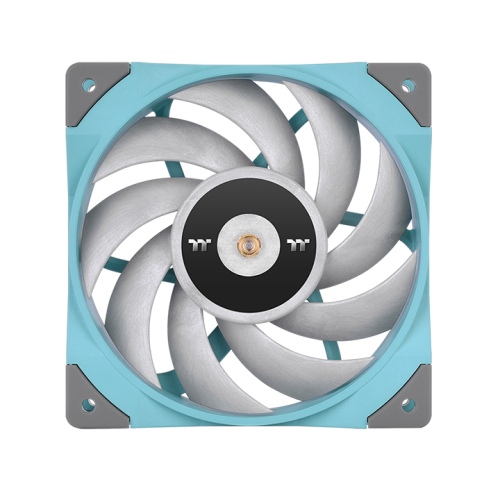

TOUGHFAN 12 Turquoise
TOUGHFAN 12 Turquoise high static pressure fan is a new edition to the TOUGHFAN series that allows users to match up the same Turquoise colored chassis or memory to form your ideal PC build!
TOUGHFAN 12 Turquoise high static pressure fan can perform at a maximum operating speed of up to 2000 RPM, producing a consistent airflow of 58.35 CFM with 2.41 mm-H2O static pressure, and maintaining a low audio noise level of 22.3 dB-A.
Featuring high tensile strength and low thermal expansion coefficient materials, mixed with a light gray pearl reflection paint that matches the Turquoise color; the fan blade is built with special liquid crystal polymer (LCP), a compound which minimizes vibration when the fan is operating at full speed.
The TOUGHFAN’s center is constructed with a full steel motor hub providing enhanced stability and durability.
Full Steel Motor Hub
Second Generation Hydraulic Bearing
The 2nd generation hydraulic bearing incorporates a new shaft design with inside etches allowing preservation of lubricant on both sides whilst reducing noise during operation. Lowering audible levels and extending lifespan.
The in-mold injection anti-vibration rubber pads dampen the vibration of the fan allowing the fan to spin at higher levels without compromising noise levels. The fan is designed to cover large surface of all corners, maintaining low noise levels when in operation.
|Fan Dimension||120 x 120 x 25 mm|
|Started Voltage||9.0 V|
|Rated Current||0.12 A|
|Rated Voltage||12 V|
|Power Input||1.44 W|
|Fan Speed||PWM 500~2000 R.P.M
With L.N.C PWM 500~1500 R.P.M
|Max. Air Pressure||2.41 mm-H2O
With L.N.C 1.2522 mm-H2O
|Max Air Flow||58.35 CFM
With L.N.C 45.72 CFM
With L.N.C 19 dB-A
|Bearing Type||Hydraulic Bearing Gen.2|
|Life Expectation||40,000 hrs,25℃|
|Connector||4 PIN PWM|
