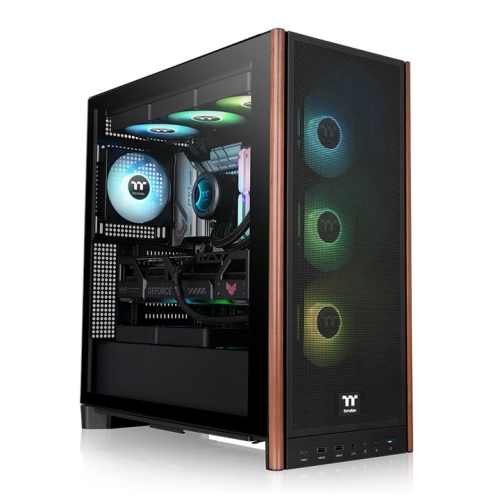

The S370 WS Mid Tower Chassis is an ATX case with a mesh front panel featuring wood accents and comes with four CT120 PWM fans pre-installed, three at the front and one at the rear. Up to nine 120mm or eight 140mm fans can be installed, and it supports up to a 360mm radiator at the front and top, providing flexible options for cooling solutions.
- The image is for reference only.
Inspired by soft, earthy tones and organic materials, the S370 WS Mid Tower Chassis introduces a warm, tactile aesthetic to your PC setup, blending natural elegance with modern design.
- The image is for reference only.
*Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series
- The image is for reference only.
The S370 WS Mid Tower Chassis comes with a large airflow-optimized mesh panel at the front for massive airflow performance.
- The image is for reference only.
- The image is for reference only.
- The image is for reference only.
The S370 WS Mid Tower Chassis features four 120mm PWM fans at the front and rear to provide good cooling performance.
- The image is for reference only.

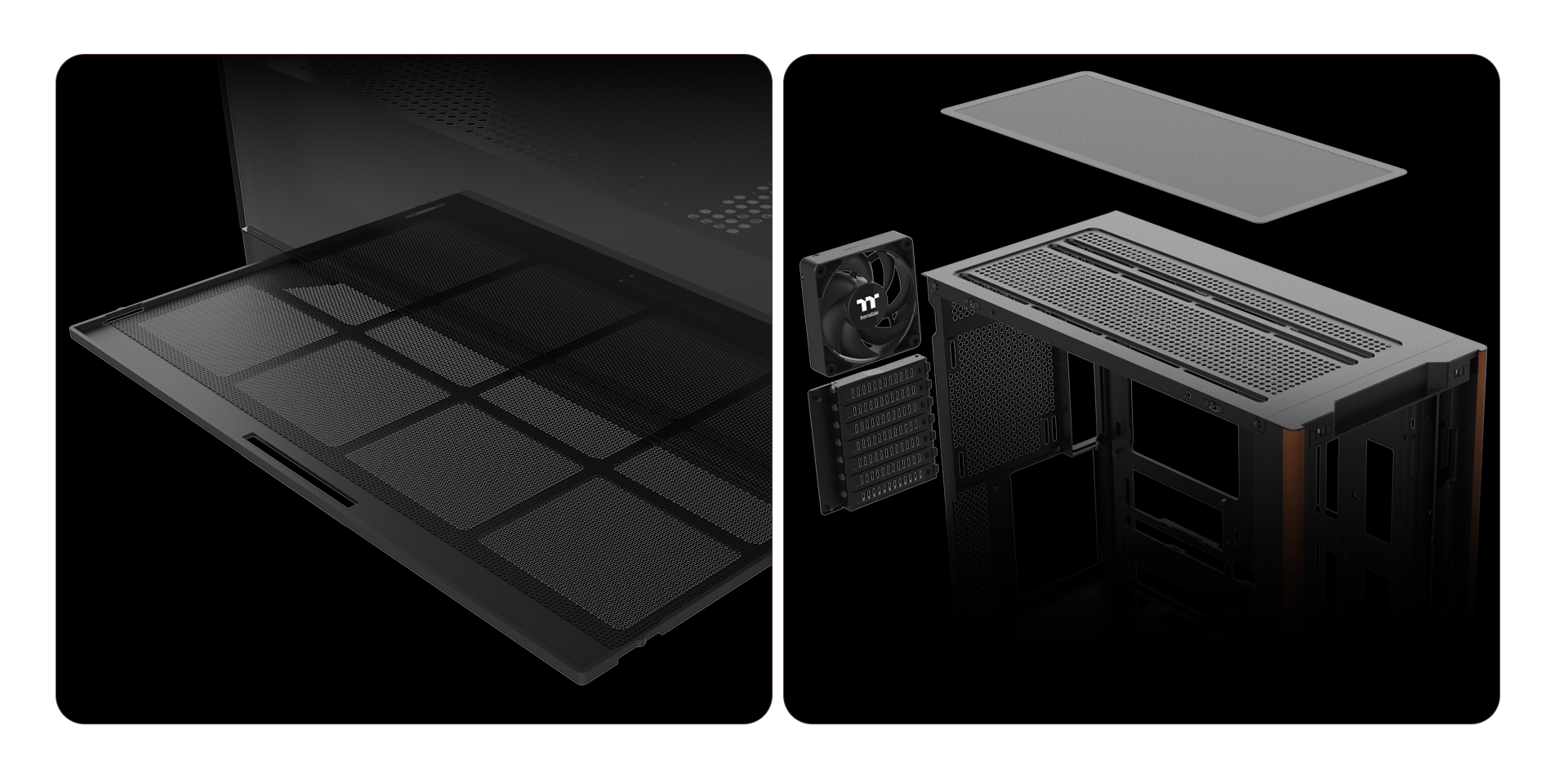

No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design
- The image is for reference only.
The S370 WS Mid Tower Chassis features a full-length power supply cover that provides plenty of space to tuck away cables while keeping airflow clear for your hard drives and PSU. Users can also install up to two 120mm fans on the PSU cover.
- The image is for reference only.
- The image is for reference only.
- 120mm
- 140mm
- 120mm
- 140mm
- 240mm
- 280mm
- 360mm
- The image is for reference only.
Two USB 3.0, one USB 3.2 Gen 2 Type-C and HD Audio ports are placed on the front panel to grant direct access when needed.
- The image is for reference only.
| 120 Series | 240 Series | 360 Series | 140 Series | 280 Series | 420 Series | |
|---|---|---|---|---|---|---|
| Top | ● | ● | ● | ● | ● | - |
| Front | ● | ● | ● | ● | ● | - |
| Rear | ● | - | - | ● | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Top | 3 | 2 | - |
| Front | 3 | 3 | - |
| Rear | 1 | 1 | - |
| Power Cover | 2 | 2 | - |
| P/N |
CA-11J-00M1WN-00 |
|---|---|
| Series | S Series |
| Model |
S370 WS |
| Case Type |
Mid Tower |
| Dimension (H x W x D) |
517 x 236 x 474.5mm (20.35x 9.29 x 18.68inch) |

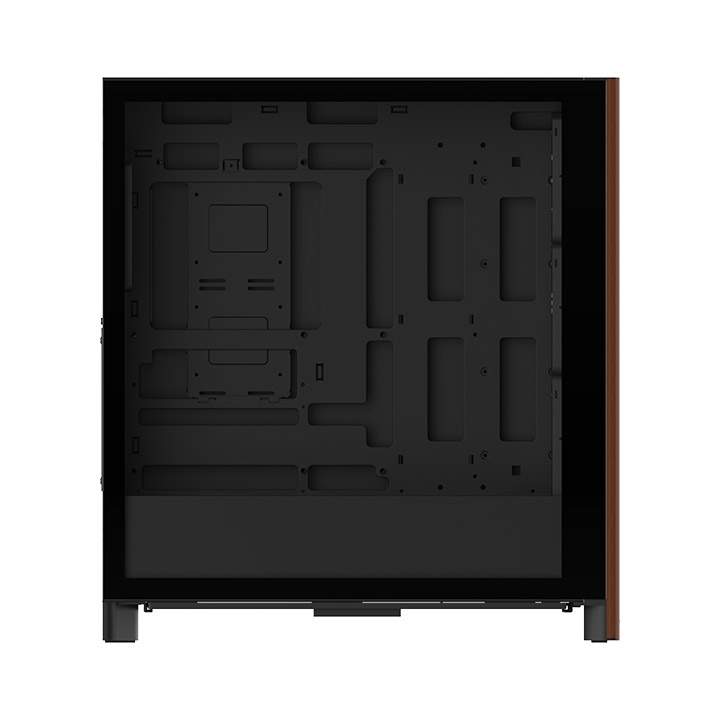

| Side Panel |
4mm Tempered Glass x 1 |
| Color | Black |
| Material | SPCC |
| Cooling System |
Front(intake) : 120 x 120 x 25 mm CT120 fan (500~2000rpm, 25.8 dBA) x 3 Rear(exhaust) : 120 x 120 x 25 mm CT120 fan (500~2000rpm, 25.8 dBA) x 1 |
| Drive Bays |
4 x 3.5”+ 2 x 2.5” or 1 x 3.5” + 5 x 2.5” |

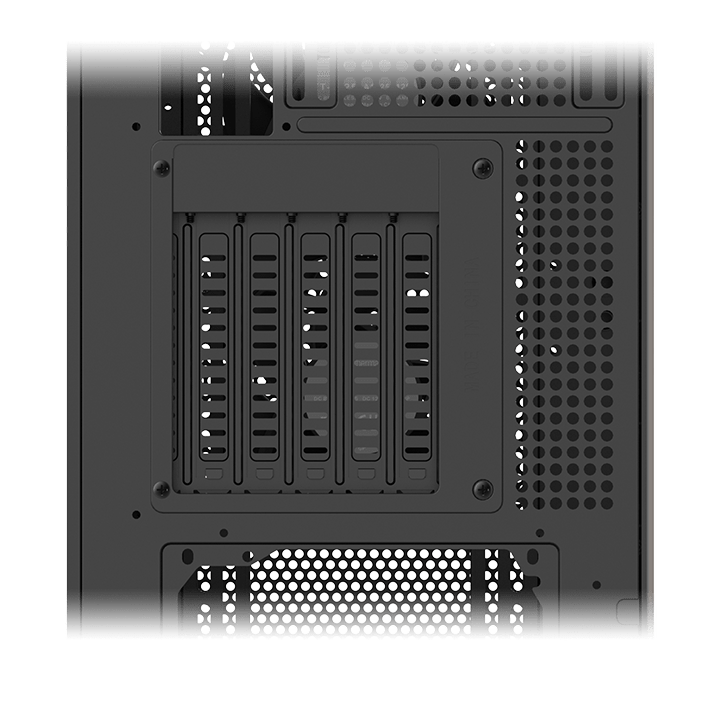

| Expansion Slots |
7 (Rotatable Patented Design) |
| Motherboards |
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) ), 12” x 13” (E-ATX) |
| Hidden-Connector Motherboard |
9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port |
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU |
Standard PS2 PSU (optional) |
| Fan Support |

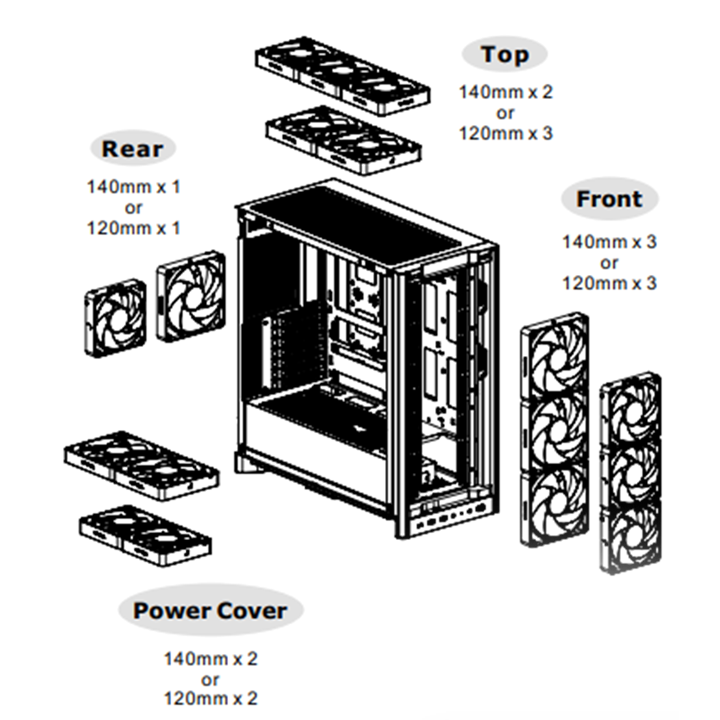

Top : 3 x 120mm 2 x 140mm Front : 3 x 120mm 3 x 140mm Rear : 1 x 120mm 1 x 140mm Power Cover : 2 x 120mm 2 x 140mm |
| Radiator Support |

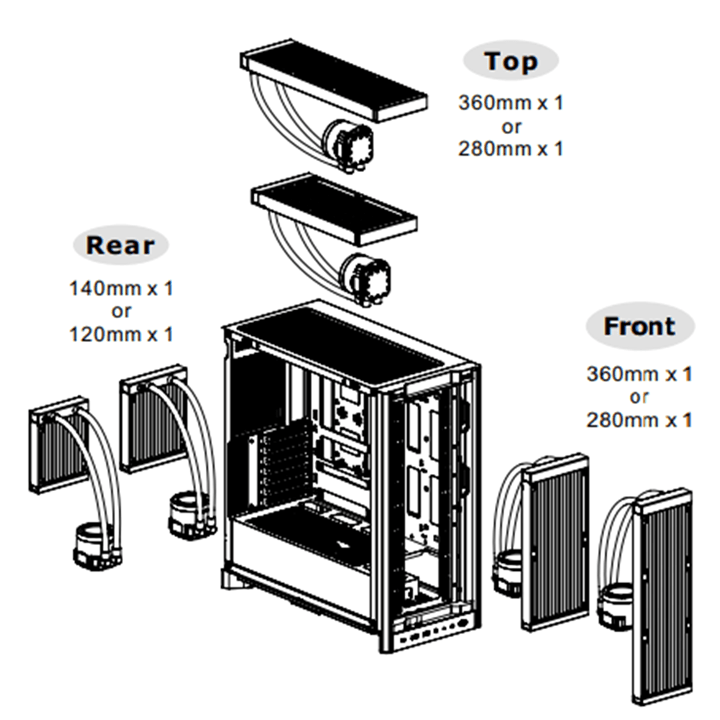

Top Side(AIO) : 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Front Side(AIO) : 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear Side(AIO) : 1 x 120mm, 1 x 140mm |
| Clearance |
CPU cooler height limitation :175mm VGA length limitation : 410mm (Without radiator) 380mm (With radiator) PSU length limitation :200mm |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
S370 WS Mid Tower Chassis Manual
- Manual
- 2025-09-05
