Pacific R2 Ultra Memory LCD Monitor Kit
Thermaltake
Pacific R2 Ultra
Memory LCD Monitor Kit

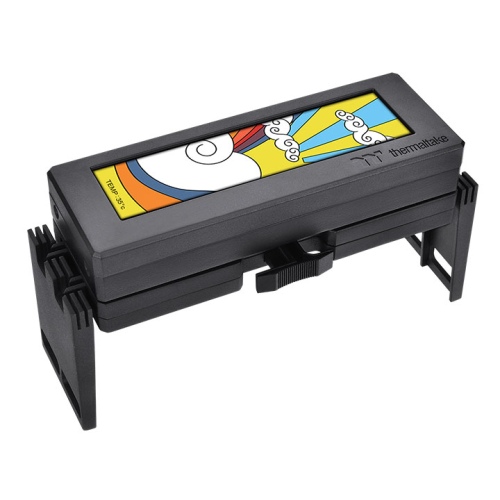

The R2 Ultra supports any memory modules within the maximum height of 48mm. Just simply clip it on top of your existing memory and connect it with an USB cable to enable the TT RGB Plus software right away.
Use TT RGB Plus to customize your favorite images or GIFs for your memory display, while monitoring PC components including CPU, GPU, RAM and coolant temperature. Other than that, it allows you to monitor load status and frequency with ease.
TT RGB PLUS Ecosystem
Light up your system with almost limitless possibilities and synchronize your TT RGB PLUS compatible products to create a RGB ecosystem that is truly unique to you.
TT RGB PLUS Software
The new version of Thermaltake’s TT RGB PLUS patented software, providing more lighting effects and PC monitoring functions.
| P/N | CL-O025-PL00SW-A |
|---|---|
| Dimensions | 144.28 x 50 x71 mm |
| Compatibility | Module Height: Max. 48 mm |
| MEMORY DISPLAY |
Rated Voltage: 5V Rated Current: 0.28A Power Input: 1.4W Display Type: 3.9” TFT-LCD (IPS) Display Resolution: 128x480 (RGB) pixels |
| DISPLAY SUPPORT |
Interface: Micro USB to USB (9PIN) System Compatibility: Windows 7/8/8.1/10 |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
TT RGB PLUS 2.0 User Manual
- TT RGB PLUS 2.0 User Manual
- 4.2 MB
- 2021-07-12
-
Pacific R2 Ultra Memory LCD Monitor Kit Manual
- User Manual
- 2021-10-06
Drivers & Software
- File Name
- Description
- Size
- Version
- Release Date
-
TT RGB PLUS Software
-
1.Added rotation support for the 6” LCD Screen Kit.
2.Resolved issues related to fan speed PWM settings.
3.Fixed an issue where MAGCurve Ultra brightness could not be adjusted.
4.Fixed RGB lighting issues with the TS Fan.
5.Fixed abnormal fan speed control issues with the TT SYNC V2 controller.
6.Updated the TOUGHRAM HAL kit.
7.Reduced unexpected crashes and performed system optimizations.
- V3.0.6
- 2026-03-03
