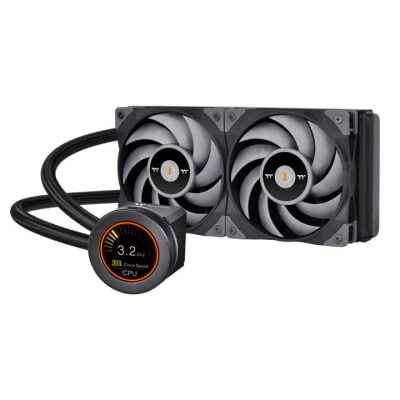

Floe RC Ultra 240 CPU & Memory AIO Liquid Cooler
- Displayed with Floe RC Ultra 240
Floe RC Ultra is an advanced high-quality all-in-one cooling solution for cooling down your CPU and memory simultaneously. The cooler includes high static pressure fans and 2 fully customizable LCD water block displays to monitor your PC performance anytime, allowing you to minimize overheating problems. Compatible with TOUGHRAM RC memory modules, the Floe RC Ultra provides a simple and intuitive way that grants users unparalleled cooling performance.
Note: Please note the Floe RC Ultra only pairs with TOUGHRAM RC memory modules (sold separately).
- TOUGHRAM RC is sold separately.

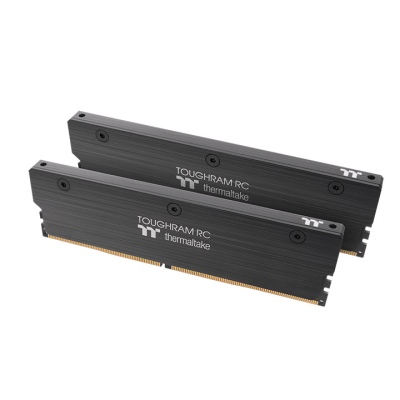

TOUGHRAM RC 3600MHz
- Idle Temp
- With Floe RC Ultra 240
- W/o Floe RC Ultra 240
- Temperature℃
41 ℃ (Full Load Temp)- 25℃ (Ambient Temp) = 16℃ (ΔT)
TOUGHRAM RC without Floe RC Ultra 240:
47℃ (Full Load Temp)- 25℃ (Ambient Temp) = 22℃ (ΔT)
( 22℃ - 16℃ ) / 22℃ = 0.27
up to 27% better ΔT performance
TOUGHRAM RC OC to 4400MHz
- Idle Temp
- With Floe RC Ultra 240
- W/o Floe RC Ultra 240
- Temperature℃
44℃ (Full Load Temp)- 25℃ (Ambient Temp) = 19℃ (ΔT)
TOUGHRAM RC without Floe RC Ultra 240:
52℃ (Full Load Temp)- 25℃ (Ambient Temp) = 27℃ (ΔT)
( 27℃ - 19℃ ) / 27℃ = 0.296
up to 29.6% better ΔT performance
Test System
- CPU：Intel® Core™ i7-11900K
- M/B：MSI MEG Z590 ACE
- GPU：ROG-STRIX-RTX2080TI
- Memory：TOUGHRAM RC 3600MHz x 4
- Benchmark：AIDA 64 (CPU & Memory at full load run)
- Duration：30 Minutes
- Ambient Temp：25℃ (±1℃)
- Temperature in degrees Celsius (Lower=Better)
- Idle Temp
- Full Load with RC Ultra 240
- Full Load without RC Ultra 240
Monitor frequency and real-time temperature directly from large LCD displays, and upload any images or GIFs to add extra flair with the TT RGB Plus 2.0 software.
Note: The Floe RC Ultra is only supported by TT RGB Plus 2.0.
Check out more animated GIFs for your AIO displays here.
- 2.1” LCD Display with 480x480 resolution
- 3.9” LCD Display with 128x480 resolution
1 inch = 19 Copper and Brass Fins
(1inch = 2.54cm)
The Floe RC Ultra offers a two year warranty for the water block, and the TOUGHRAM RC offers a limited lifetime warranty for the RAM.
Terms and conditions apply, please click on “LEARN MORE” for details.
- All images/videos are for reference only. Please refer to the product for precise appearance and light effects.
- Overclocking TOUGHRAM RC Memory has been tested on selected Intel DDR4 motherboards, please note that compatibility and performance may differ due to components variations in your hardware system.
| P/N | CL-W324-PL12GM-A |
|---|---|
| Memory Type |
TOUGHRAM RC Series |
| Compatibility |
Intel LGA 2066/2011-3/2011/1700/1200/1156/1155/1151/1150 AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1 |
| LCS Kit Specifications |
Water Block Material: Copper Pump: Motor Speed: 3200 RPM Rated Voltage: 12 V Rated Current: 0.38 A Power Input: 4.56 W CPU Display Rated Voltage: 5 V Power Input: 11.5 W Display Type: 2.1” TFT-LCD (IPS) Display Resolution: 480x480 (RGB) px Memory Display Rated Voltage: 5 V Power Input: 14 W Display Type: 3.9" TFT-LCD (IPS) Display Resolution: 128x480 (RGB) px Display Support Interface: Micro USB to USB (9PIN) System Compatibility: Windows 7 / 8 / 8.1 / 10 Fan Dimensions: L120 x W120 x H25 mm Speed: PWM 500~2500 R.P.M (2510-4PIN) Noise Level: 28.1 dB-A Power Input: 2.76 W (one fan) Rated Voltage: 12 V Rated Current: 0.23 A (one fan) Max. Air Flow: 72.69 CFM (one fan) Max. Pressure: 3.78 mm-H2O (one fan) Radiator Dimensions: L273 x W120 x H27 mm Material: Aluminum Tube Length: 400 mm Material: Rubber |
User Manual
- File Name
- Description
- Size
- Version
- Release Date
-
Floe RC Ultra 240 Manual
- Floe RC Ultra 240 Manual
- 2021-07-11
-
Floe RC Ultra AIO Software Manual
- Floe RC Ultra AIO Software Manual
- 453 KB
- 2021-07-12
-
TT RGB PLUS 2.0 User Manual
- TT RGB PLUS 2.0 User Manual
- 4.2 MB
- 2021-07-12
Drivers & Software
- File Name
- Description
- Size
- Version
- Release Date
-
TT RGB PLUS Software
-
1.Add new product MAGFloe Ultra LCD screen.
2.Fixed the 3.9-inch LCD screen profile fail issue.
3.Update the RAM Hal kit.
4.Made minor bug fixes and system performance improvements. - V2.1.9
- 2025-01-13
